On Earth, we have tried-and-tested ways to classify resources – systems built on drilling, lab tests, and decades of mining. But the Moon is different. No atmosphere, no water cycle, and no easy way to sample what’s beneath the surface.

If we want to extract oxygen, metals, or water from the lunar surface, we need a new way to classify materials – one that works with lunar soils, space weathering, and extreme conditions. In this post, we’ll explore how Earth’s system compares to what we’re building for the Moon – and why understanding things like particle size, melting point, and in-situ resource utilization is key to making lunar mining possible.

Earth’s Classification: From Reserves to Reality

On Earth, geologists don’t just find resources – they classify them. Why? Because mining is expensive, and investors, engineers, and governments need to know how sure we are that something valuable is there, and how realistic it is to get it out.

Here’s how it works:

• Resources are concentrations of materials like iron, copper, or water that we believe are present, but we’re not always certain if they can be extracted profitably.
• Reserves are the part of those resources we know we can extract with existing technology, at today’s prices, and under current regulations.

To break it down even further:

• Measured resources have been thoroughly tested—think detailed drill cores and lab results. We know their location, quality, and size very precisely.
• Indicated resources are fairly well known but less detailed.
• Inferred resources are mostly educated guesses, often based on limited sampling or remote sensing.

This system helps mining companies plan where to dig, estimate costs, and decide what tech they’ll need for mineral processing. For example, a measured iron ore deposit near infrastructure is likely to be turned into a reserve. An inferred deposit deep in the jungle? Maybe not.

This classification system also feeds into water management, environmental impact reports, and project timelines. Everything from mine safety to local community impact depends on how accurately we know what’s underground.

But here’s the catch: all of this assumes we can drill, sample, and map the site extensively.

Why the Moon Requires a Different Approach

Lunar sample from Apollo 17 mission

Now let’s shift to the lunar surface. We can’t drill dozens of test holes or send ore samples to a lab. Every robot we land there costs millions, and the data is limited.

The Moon has no rain, rivers, or tectonic shifts. Instead, its top layer – lunar regolith – has been shaped by billions of years of micrometeorite impacts, solar radiation, and the gradual breakdown of rock. This means that space weathering has altered both the chemistry and spectral response of surface materials. What looks like a mineral-rich site from orbit might behave very differently on the ground.

The regolith is dry, jagged, and ultra-fine. Unlike Earth soil, which is bound together by moisture and clay, lunar regolith is loose and electrostatically clingy. It’s made of broken rock, melted glass beads, and tiny metallic fragments. There’s no easy way to compare it to Earth’s dirt or sand.

This is where practical classification comes in.

Let’s say a robotic mission lands in a crater near the lunar poles, where we think water ice exists. Engineers need to know:

• What’s the particle size distribution of the surface? Can our drills handle it?
• What’s the shear strength of the soil? Will the lander sink?
• Is the glass content high? That affects melting point and 3D printing potential.
• What’s the bulk elemental composition? That tells us what oxygen, silicon, or metals we might extract.

Because the Moon’s environment is so different, we need a new way to classify and evaluate these materials for space resource utilization. That means creating a system that isn’t just about economic feasibility, but also mission constraints: power limits, robot mobility, processing tech, and mission duration.

So while Earth’s system is built around financial return, the Moon’s system needs to be built around technical viability.

In space, it’s not about profit per ton – it’s about grams per watt.

A New Way to Think About Lunar Soil

Scientists can’t use Earth’s soil classification system for the Moon because the Moon has no clay, water, or organic matter. So instead, they’ve proposed a system based on two main properties:

1. Bulk iron content – How much iron is in the soil? This affects its potential for oxygen extraction or metallurgy.
2. Mean particle size – Are we dealing with fine dust or coarser grains?

Combining these gives us a lunar soil classification system that’s more practical for space operations. For example, a high-iron, fine-grain soil might be ideal for making oxygen or metal parts, while coarse, low-iron soil might be better for radiation shielding.

Also important: particle size distribution. The Moon’s regolith isn’t just dust – it ranges from microns to gravel-sized chunks. And specific surface area (the total surface area per unit weight) is key for chemical reactions. Finer particles have higher surface area, which can speed up things like oxygen release when heated.

So yes, particle size really matters.

What Are Lunar Regolith Simulants?

Since we can’t practice mining or building on the actual lunar surface, scientists rely on lunar regolith simulants – Earth-made materials that imitate lunar soils as closely as possible. These simulants are made by crushing terrestrial rocks to match the Moon’s particle size, glass content, and bulk elemental composition.

While they aren’t perfect replicas, they’re close enough for lab testing, and they’ve become essential for developing space mining and construction technologies.

Two of the most commonly used simulants are:

• JSC-1A: Mimics basaltic soils found in the lunar maria. It’s dark, rich in iron-bearing minerals, and ideal for oxygen extraction experiments.
• NU-LHT: Simulates the light-colored anorthosite found in the lunar highlands. It’s used to study materials from the Moon’s older crust, especially for additive manufacturing.

These simulants help test tools, processing systems, and even building methods before we launch them into space. Without them, we’d be designing everything blind.

Why Simulant Properties Matter for Moon Missions

Once we have the right simulant, researchers use it to study how future missions might interact with real lunar regolith properties. They measure things like:

• Shear strength: How much pressure the soil can take before collapsing—key for landers, drills, or rovers.
• Surface roughness: Affects dust behavior, especially around sensitive instruments or joints.
• Glass content and melting point: Crucial for 3D printing methods like selective laser sintering, which melt regolith to create building blocks.
• Specific surface area: Determines how easily heat or chemicals can react with the material – important for extracting oxygen or metals.
• Particle bonding concepts: Help researchers understand how grains fuse together when sintered, and how to control cracking or warping.

These practical experiments are already shaping real tools:

• Excavation tools are tested on simulants with different particle size distributions to simulate soft vs. coarse regolith layers.
• Oxygen extraction units use simulants to practice pulling O₂ from ilmenite or silicates using heat or gas.
• Lunar-based construction teams test whether printed bricks can survive Moon-like temperature cycles.

By using regolith simulants, space engineers can design smarter systems, reduce mission risk, and start preparing for full-scale space resource utilization – all without ever leaving Earth.

From Regolith to Resources

When it comes to mining the Moon, everything starts with the regolith. But it’s not just about digging. We need to:

1. Detect materials from orbit using remote sensing and study how they reflect light (that’s where spectral response comes in).
2. Confirm presence with landers or rovers – future missions will drill into the surface at places like the lunar poles, where water ice may exist.
3. Analyze samples using tools like X-ray diffraction to identify crystalline minerals like pyroxene, olivine, or plagioclase.
4. Process those minerals on-site – this is where mineral processing and in situ resource utilization become real.

For example, we can extract oxygen from minerals using heat or chemicals. We might even split water ice into hydrogen and oxygen – great for fuel. This is what we mean by Lunar resource utilisation: using what’s already out there, so we don’t have to carry it all from Earth.

Additive Manufacturing: Printing with Moon Dust

Why not just send everything we need from Earth?

Because it’s expensive. Launching material costs thousands of dollars per kilogram. That’s why researchers are working on 3D printing technologies that use lunar regolith simulants.

Selective laser sintering is a top method: lasers melt regolith grains into solid structures, layer by layer. It works best with certain particle bonding concepts, where grains fuse thanks to heat and pressure.

To make this efficient, we need to control:

• Particle size distribution
• Glass content (glass melts easier than crystal)
• Melting point of each mineral
• Heat capacity – how much energy is needed to melt or sinter a material

Early tests show we can build simple shapes – like landing pads or radiation shields – using only simulants and lasers. But long-term, we want to scale up to Lunar-based manufacturing and construction of habitats, roads, and more.

The Special Case of the Lunar Poles

Most of the Moon is dry, but the lunar poles – especially permanently shadowed craters – might hold water ice. This is huge for space mining because water supports life, can be split for rocket fuel, and plays a role in water management for habitats.

Finding it isn’t easy. Ice may be buried under dust, trapped in tiny grains, or mixed with impact melt (rock fused by heat from meteorites). And since we can’t send drill rigs everywhere, we rely on remote sensing and follow-up robotic sampling to narrow down targets.

Once we know where the ice is, we’ll need to:

• Develop heaters to extract vapor
• Filter and store it for use
• Recycle it carefully (nothing goes to waste in space)

Water is the key to everything. No wonder it’s the top goal of NASA’s space resource utilization planning.

Apollo 17: A Case Study in Lunar Soils

The Apollo 17 mission in 1972 was more than just NASA’s last Moon landing – it was a scientific milestone. Astronauts Eugene Cernan and Harrison Schmitt collected over 110 kilograms of lunar soils, rocks, and core samples from the Taurus–Littrow valley, an area chosen for its mix of volcanic features and impact melt zones.

These samples helped shape everything we know about the lunar surface. They revealed high glass content from ancient meteorite collisions, unique bulk elemental compositions, and a wide particle size distribution – from fine dust to gravel. This was our first close look at how space weathering alters soil over billions of years.

Some samples even came from deep layers of the Moon, offering rare clues about the lunar mantle. These findings helped calibrate remote sensing data and refine lunar regolith simulant recipes used for testing mining tools, X-ray diffraction analysis, and ISRU experiments back on Earth.

In short, Apollo 17 gave us more than rocks. It gave us the baseline for understanding lunar regolith properties – and that’s the foundation for future space resource utilization.

Why Classification Still Matters

You might ask: why do we care about classifying things? Isn’t it enough to just find and use the resources?

Well, not quite.

To build a mining plan, you need to know:

• What’s there (composition, depth, particle size)
• How sure we are (is it a guess or a proven deposit?)
• How useful it is (can it be processed or printed?)

Without clear categories, investors, space agencies, and engineers can’t make decisions. That’s why we’re adapting Earth’s classification systems to fit space. New frameworks are being proposed, blending geology, mission design, and economic logic.

Eventually, we’ll have our own lunar version of “reserves” and “resources” – but built around mission profiles, ISRU needs, and lunar regolith properties instead of market prices.

What’s Coming Next?

Future missions (like NASA’s VIPER rover and ESA’s Prospect package) will gather new data from the Moon’s surface – especially near the poles. This will help refine our models of particle size, shear strength, bulk elemental composition, and more.

In the meantime, scientists and engineers are experimenting with regolith simulants, designing tools for mineral processing, testing 3D printing, and simulating how materials behave under lunar conditions.

As we continue, we’ll get better at defining what counts as a usable resource on the Moon. We’ll improve our lunar soil classification system, refine tools like X-ray diffraction, and build better models of heat capacity, melting point, and space weathering.

Bit by bit, the Moon is becoming less of a mystery – and more of a place we can work.

By examining how Martian volcanoes worked and how they resemble (or differ from) Earth’s, we can start to predict what mineral bounty might await future Mars explorers. Let’s dive into the planet’s ancient history and see what clues it offers about valuable minerals beneath the surface.

Mars and Its Mighty Volcanoes: A Planet Forged by Fire

Mars was once a volcanically active world. Billions of years ago, its interior heat fueled massive volcanoes that dwarfed those on Earth. The prime example is Olympus Mons, a giant shield volcano about 21–27 kilometers tall and over 600 km wide. That’s roughly three times the height of Mount Everest and about the size of Arizona in area. Mars hosts a whole province of huge volcanoes in regions like Tharsis (home to Olympus Mons and three others) and Elysium.

These volcanoes could grow so large because Mars lacks the plate tectonics that Earth has. On Earth, moving tectonic plates carry volcanoes off their hotspots, limiting their size, but Mars’s crust stayed stationary over hot spots, allowing magma to pile up in one location for eons. The result was hundreds of millions of years of eruptions building enormous volcanic edifices.

Martian volcanism was most intense in the distant past (the Noachian and Hesperian epochs, over 3 billion years ago), but continued into more recent geological times. Some lava flows on Mars are relatively young – there’s evidence of eruptions a few hundred million years ago, and possibly even minor activity in the last 50 million years. Today, Mars appears geologically quiet on the surface; no active eruptions have been observed by our spacecraft.

Nonetheless, the towering volcanoes and vast hardened lava plains are a testament to a fiery past that did more than reshape the landscape: it may have redistributed and concentrated minerals in the Martian crust.

Shaped by Basalt

Most Martian lava is basaltic, a dark volcanic rock rich in iron and magnesium. When you see Mars’s grey-black volcanic plains or the dark dunes of basaltic sand, you’re looking at solidified basalt lava. The dark sand dunes common on Mars owe their color to volcanic basalt and contain minerals like magnetite, chromite, and ilmenite (iron- and chromium-bearing oxides) derived from those lavas (known from both surface observations and Martian meteorites).

Wind has helpfully gathered these heavy mineral sands into concentrated dunes, which could provide iron, titanium, and chromium for construction and manufacturing. In essence, Mars’s basaltic volcanoes paved the planet with raw material. Ore deposits often form with the help of heat, and volcanoes are tremendous heat engines. Over time, these massive volcanoes may have enabled two key mineral-forming processes:

• Magmatic differentiation (separation of heavy minerals during magma cooling),

• Hydrothermal activity (metal-rich fluids depositing ores in cracks and fractures).

How Volcanoes Can Concentrate Minerals: Earth Analogs

Why would volcanic activity create valuable mineral deposits? The answer lies in some basic geology that applies to both Earth and Mars.

A. Magmatic Differentiation (Crystal Settling)

As magma cools, heavy minerals like chromite, magnetite, and sulfides sink and settle to the bottom of the chamber due to gravity, forming layered intrusions of dense, metallic elements. Earth’s Bushveld Complex (rich in platinum) and Norilsk (a major nickel-copper mine) are prime examples. If similar processes occurred in Martian magma chambers, Mars might host hidden pockets of valuable metals.

B. Hydrothermal Activity (Hot Water Circulation)

The second mechanism needs not just heat but also water. Volcanoes often occur in areas with groundwater or can create their own water by melting ice or releasing fluids. Hot magma heating groundwater = a hydrothermal system, essentially a natural hot spring or geothermal vent, creating systems that dissolve metals and later deposit them as ore veins (gold, silver, copper, etc.).

On Earth, this leads to massive deposits in volcanic belts like the Andes or the Pacific “Ring of Fire”. Mars also shows evidence of past hydrothermal activity, raising the possibility that similar metal-rich veins formed long ago.

Martian Minerals vs. Earth’s Volcanic Treasures

Earth’s volcanoes yield enormous mineral wealth. Could Mars offer analogs?

Terrestrial volcanoes leverage both these processes to create mineral wealth. Mars, as far as we know, had plenty of heat and volcanic activity in the past. By analogy, they could have formed similar deposits. The big question is: did it also have the water and the right conditions to do so? Let’s see what Mars rovers and orbiters have found.

What We Know So Far (What Mars Missions Have Found)

How do we know all this about Martian minerals? Robotic missions – orbiters, landers, and rovers – have thus far been our geologists on the ground (and in the sky). They have already made some “prospector-style” discoveries, even if mining wasn’t their primary goal. Here are some of the highlights:

Opportunity Rover (Meridiani Planum) – Hematite, Sulfates, and Meteorites

The Opportunity rover landed in 2004 in Meridiani Planum because a spectrometer from orbit saw signs of hematite there. On the ground, Opportunity discovered those hematite “blueberries” (tiny concretions that form in wet sediment), which were rich in iron (hematite). This was key evidence for past liquid water, but from a resources perspective, it also means free iron oxide pellets lying on the ground that could even be used to produce iron metal.

Opportunity also found veins of gypsum (calcium sulfate), which likely formed from mineral-rich water moving through a crack. What’s interesting is that this happened at the meeting point of sulfate-rich sandstone and older volcanic rocks at Endeavour Crater’s rim – essentially groundwater interacting with volcanic rock, which is a recipe for hydrothermal mineral formation.

Opportunity even stumbled upon metallic iron-nickel meteorites sitting on Mars’s surface. While not from Mars itself, those meteorites are rich in iron (one was 93% iron metal) and could also be resources – they required no mining at all, just simply scooping up! These discoveries show that Mars’s surface has accessible pockets of useful minerals even before we dig deep.

Spirit Rover (Gusev Crater) – Hot Spring Silica and Ancient Volcanoes

On the other side of Mars, the Spirit rover explored Gusev Crater (which was thought to be an old lakebed) and found layered rocks at a plateau called Home Plate, which turned out to be formed by volcanic explosions (likely a hydrovolcanic eruption where magma met water). Around Home Plate, Spirit made one of its most remarkable finds: patches of almost pure opaline silica (SiO₂·nH₂O). How do you get pure silica?

On Earth, either from acid vapors coming out of a volcano (fumaroles) or from a hot spring depositing silica. In either case, water is involved. The evidence suggested that Spirit had found the remnants of an ancient hot spring or fumarole on Mars – a strong sign of hydrothermal activity in a volcanic setting.

This was huge for science (as a possible habitat for ancient life), but it also means Mars did have the kind of geothermal systems that create mineral deposits. Along with silica, Spirit’s instruments detected other alteration minerals in Columbia Hills, like sulfates and iron oxides, all indicating that water + volcanic heat had altered the rocks.

Curiosity Rover (Gale Crater) – Layered Sediments and Varied Mineralogy

Although not a volcano, but a mound of sedimentary rock, at Gale Crater’s Mt. Sharp, Curiosity identified clay minerals and hematite in mudstone layers (clays often form by weathering of volcanic ash in water), and in higher layers it found lots of sulfate salts. The interesting twist was the discovery of that rare mineral tridymite in one rock sample. Its presence hinted that maybe a volcano somewhere was erupting ash that got into Gale Crater’s lake.

This implies not all Martian volcanism was basaltic; some might have been more like Earth’s cone volcanoes with evolved magma. If Mars had such volcanism, it would broaden the mineral prospects (e.g., more silica usually means potential for minerals like quartz veins, pegmatites with exotic elements, etc.).

Also, Curiosity drilled into Martian rocks and indirectly has shown that Martian rocks contain a mix of elements needed for life and useful to people (phosphorus, sulfur, chlorine, etc.).

Mars Reconnaissance Orbiter (MRO) – Scouting from Above

MRO’s instruments, like the CRISM spectrometer, have been instrumental in mapping minerals across Mars from orbit. CRISM has identified hundreds of locations with clay minerals, sulfates, silica, and other hydrated minerals on the Martian surface. Many of these are in ancient terrain, often around what appear to be ancient hydrothermal systems or water-rich environments.

One particularly relevant MRO finding was at Auki Crater: signs of minerals like smectite (clay), silica, zeolites, serpentine, carbonate, and chlorite were found in ridges inside this impact crater. This assemblage is characteristic of impact-induced hydrothermal systems on Earth.

While we haven’t detected rich metal ores at Auki, the mineral evidence of hydrothermal alteration is there.

Likewise, MRO found that in the giant Eridania basin (mentioned earlier), the mix of minerals points to seafloor hydrothermal deposition. MRO has essentially mapped out the most interesting mineral hotspots for future missions. We now know where the clays, sulfates, carbonates, iron oxides, etc., are concentrated on the surface.

The Million Dollar Question: Could Mars Be Mined?

While exporting metals to Earth is unlikely in the short term due to launch costs, Mars may become self-sufficient through local mining. Even without deep drilling, Mars offers some surface-accessible minerals:

• Hematite spheres and magnetite sands (iron),
• Ilmenite dunes (titanium),
• Gypsum veins (sulfur, construction materials),
• Silica-rich soils (potential for electronics and water extraction),
• Meteorites rich in metallic iron and nickel.

Space agencies and visionaries certainly think Mars will be an outpost for humanity in the future, which will rely on these materials to support in-situ resource utilization (ISRU). In the near term, that means things like digging up regolith (soil) to make bricks, extracting water from subsurface ice, and generating oxygen from the atmosphere or perchlorate salts.

Future Prospects

One advantage is that Mars’s gravity, while stronger than the Moon’s, is still only 38% of Earth’s. That makes it easier to excavate and haul materials (though still not trivial). But before any mining, we have to find the good ore first. The evidence suggests volcanic regions and ancient hydrothermal areas are prime targets. We’ve already identified some key regions of interest, for example:

• The flanks of big volcanoes like Olympus or Elysium Mons, where magma may have differentiated;
• The interiors and rims of large impact craters that show mineral alteration (could be ancient hydrothermal mines);
• Areas with exposed dikes and veins visible from orbit (potential pathways of ore-forming fluids).

What We Would Need to Make It Happen

However, there are some key future developments we would need to be able to tap into these riches, such as:

Resource Mapping

Using advanced orbiters, AI-driven drones, or rover-mounted geophysical sensors to detect metal anomalies and dense rock formations. Scientists have suggested sending flying drones with magnetic and gravity sensors to skim the Martian surface to detect the subtle signals of dense metal deposits underground.

Mars’s thin atmosphere and wide-open plains would be suitable for lightweight autonomous aircraft (the Ingenuity helicopter, currently scouting for the Perseverance rover, has proven flight is possible on Mars). An aerial prospector could map variations in Mars’s gravity or magnetic field that indicate concentrations of heavy minerals or ores.

Autonomous Extraction

If promising deposits are found, the next step is extraction technology – developing low-gravity mining machines, magnetic separators, or solar-powered furnaces for local metallurgy. Mining on Mars would have challenges, such as the cold, the dust, the need for autonomous or remote-operated machinery (until lots of humans are present).

But it also has opportunities: for example, open-pit mining might be easier with lower gravity and no rain to worry about. Mars’s regolith is also not as weathered as Earth’s soil (no biological activity, etc.), so in many places, it’s essentially crushed rock ready to process. For instance, those magnetite-ilmenite dunes could be harvested with a simple front loader and run through a magnetic separator to pull out pure iron ore and titanium minerals.

Iron from Martian hematite or magnetite could be smelted (with the help of solar or nuclear power) into steel for building habitats. Chromium and titanium could make strong alloys for machinery that must handle Mars’s environment.

Volcanic Foothills and Dikes

For more precious metals like gold, platinum, or rare earths, it’s highly speculative whether Mars has any rich lodes of these. If they exist, they might be deep or in very specific geological settings (perhaps ancient hot spring deposits or the base of long-solidified magma chambers).  Early Mars settlers will likely focus on the “low-hanging fruit” – abundant materials like iron, aluminum (from basalts and clays), sulfur (from sulfates), carbon (from CO₂ in the atmosphere or carbonates in rock), and, of course, water ice.

But as infrastructure grows, prospecting deeper will become feasible. One could envision a human mission in, say, Valles Marineris (the great canyon system) finding exposed mineral veins in the cliff walls, or a team setting up a mining camp near the foothills of a volcano where orbital surveys showed a strong metal anomaly.

Why Do We Care? Scientific and Economic Potential of Future Missions

From an economic standpoint, exporting minerals from Mars to Earth is unlikely to be viable in the foreseeable future, given the high cost of interplanetary transport. However, using Mars’s minerals on Mars will be absolutely vital if we are to have bases or colonies there. Every bit of steel or copper wire or silicon chip that can be manufactured on Mars from local materials is one less thing that has to be hauled from Earth.

In that sense, Mars’s volcanoes might one day provide the mines that support a Mars colony’s industry. Resources mined on Mars could also be used to build large spacecraft or satellites in Mars orbit or on Phobos (one of Mars’s moons), which might then be sent elsewhere. Such scenarios are distant, but they often start with the question: What does Mars have that we can use? And as we’ve seen, Mars has quite a lot – if we’re clever enough to extract it.

Over time, Martian volcanoes could evolve from landmarks of curiosity into vital infrastructure hubs for off-world industry. But beyond industrial use, exploring the Red Planet also means uncovering its history. Each mineral zone is a time capsule of Mars’s geology and resource potential, climate, and possible environments for past life. For example:

• Silica hot springs are potential astrobiological hotspots.
• Metal-rich hydrothermal veins could preserve biosignatures.
• Ancient mineral-rich basins may offer insight into Mars’s early atmosphere and tectonics.

By “mining” Mars, we will also be learning Mars, reading the records left in its rocks.

Forged in Fire, Waiting to Be Found

Mars’s volcanic past laid the foundation for a potentially resource-rich planet. From massive magma chambers to mineral-laden hydrothermal springs, Martian geology mirrors many ore-forming processes on Earth. Terrestrial volcanoes have given us rich deposits of metals and minerals, and many of the prerequisites for those processes existed on Mars as well.

We’ve already seen iron-rich sands, sulfur-bearing rocks, high-silica zones, and mineral veins, all telling us that valuable materials are present, even if the richest lodes remain undiscovered.  What we lack so far is the “smoking gun” of, say, a gold-laden quartz vein sticking out of a Martian crater – but our exploration has really only scratched the surface (literally).

As Mars exploration accelerates, its volcanoes may transition from ancient relics to one day providing us with iron, titanium, and more, forged deep in the planet’s interior, waiting to be tapped in beneath the dust.

Just as they once offered safety on Earth, lunar caves might provide vital shelter for future explorers venturing into the Moon’s harsh, airless world. But what are these lunar lava tubes, exactly? How did they form, and why do scientists and engineers find them promising as habitats? Below, we answer all of these questions and also look at missions studying lunar caves and the technologies needed to make these natural bunkers under the lunar surface livable.

What Are Lunar Lava Tubes & How Did They Form?

Lunar lava tubes are essentially underground caves left behind by flowing lava. Billions of years ago, the Moon’s surface was covered by seas of molten rock (basaltic lava) that solidified over time into the dark basalt plains we now see as lunar maria. Because of this, researchers have speculated for years that, much like Earth, the Moon might also contain volcanic formations like lava tubes.

As a lava stream slowly cooled from the outside, it formed a hard crust on top while still flowing underneath. Eventually, the lava drained away, leaving a hollow, cylindrical tunnel beneath the hardened crust. This process is the same as on Earth – imagine pouring thick lava into a riverbed; once the flow stops, a tunnel remains where the lava once coursed.

These tubes can be vast under lunar gravity (about 1/6th of Earth’s gravity). Because there is no atmosphere to cool the lava quickly, lunar lava tubes grow much larger than Earth’s. Modeling studies estimate that Moon tubes can be hundreds of meters wide, hundreds of meters deep, and tens of kilometers long – truly cavernous spaces. In contrast, Earth’s basaltic tubes (like those in Hawaii) are often only a few meters across. They often follow ancient sinuous rilles (meandering channels) on the surface.

As each tunnel formed, sections of the regolith and rock collapsed, leaving skylight pits on the surface. Over 200 such pit craters have been identified on the Moon, and these are likely places where the chamber roof gave way into the void below. For example, the famous Marius Hills pit on the Moon’s near side is about 60–65 meters across and 40 meters deep. Scientists believe it marks a hole in the ceiling of a much larger subsurface lava tube underneath. These have been some of the most compelling evidence for lunar tubes.

Lava Tube Structure and Environment

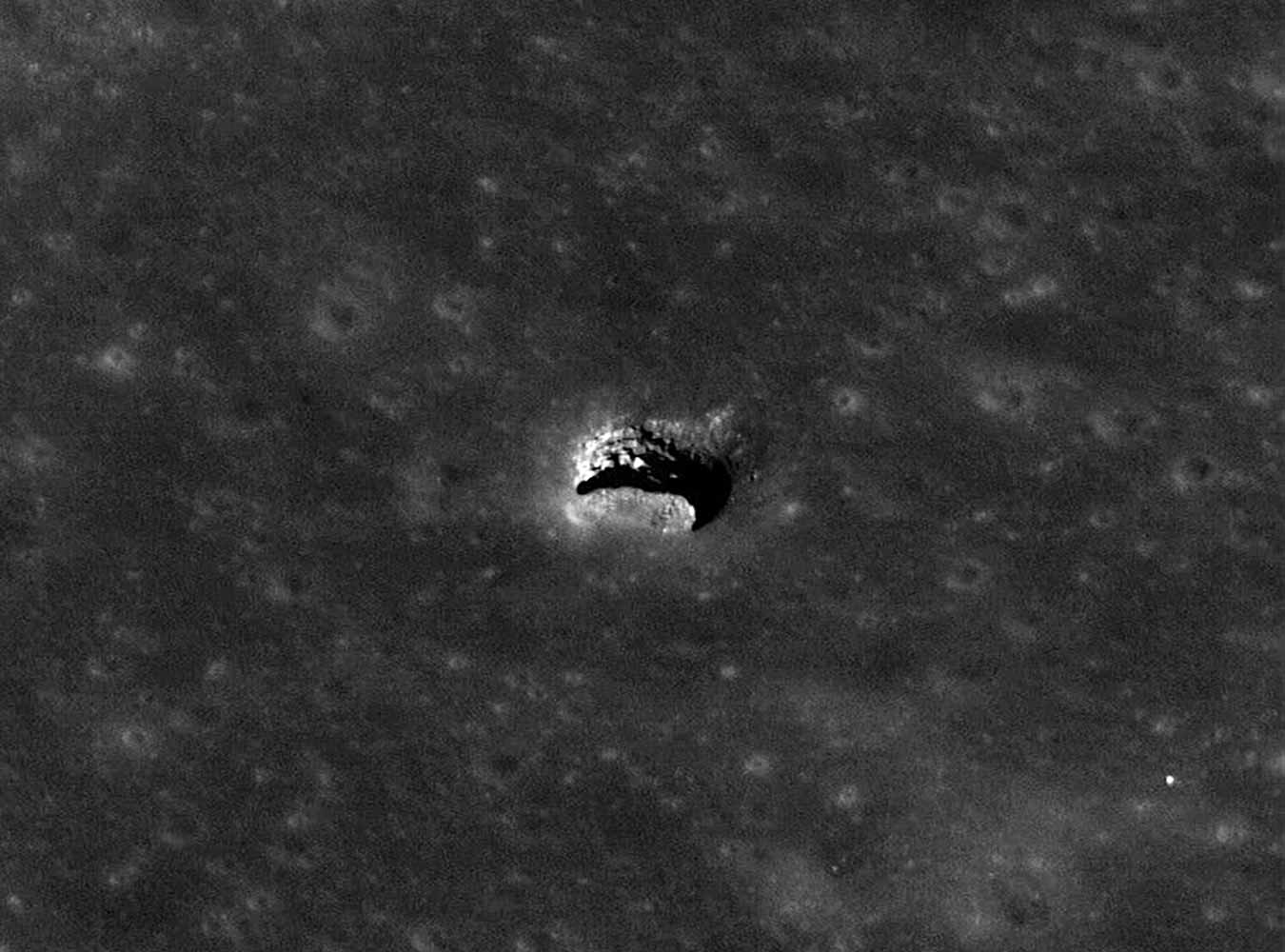

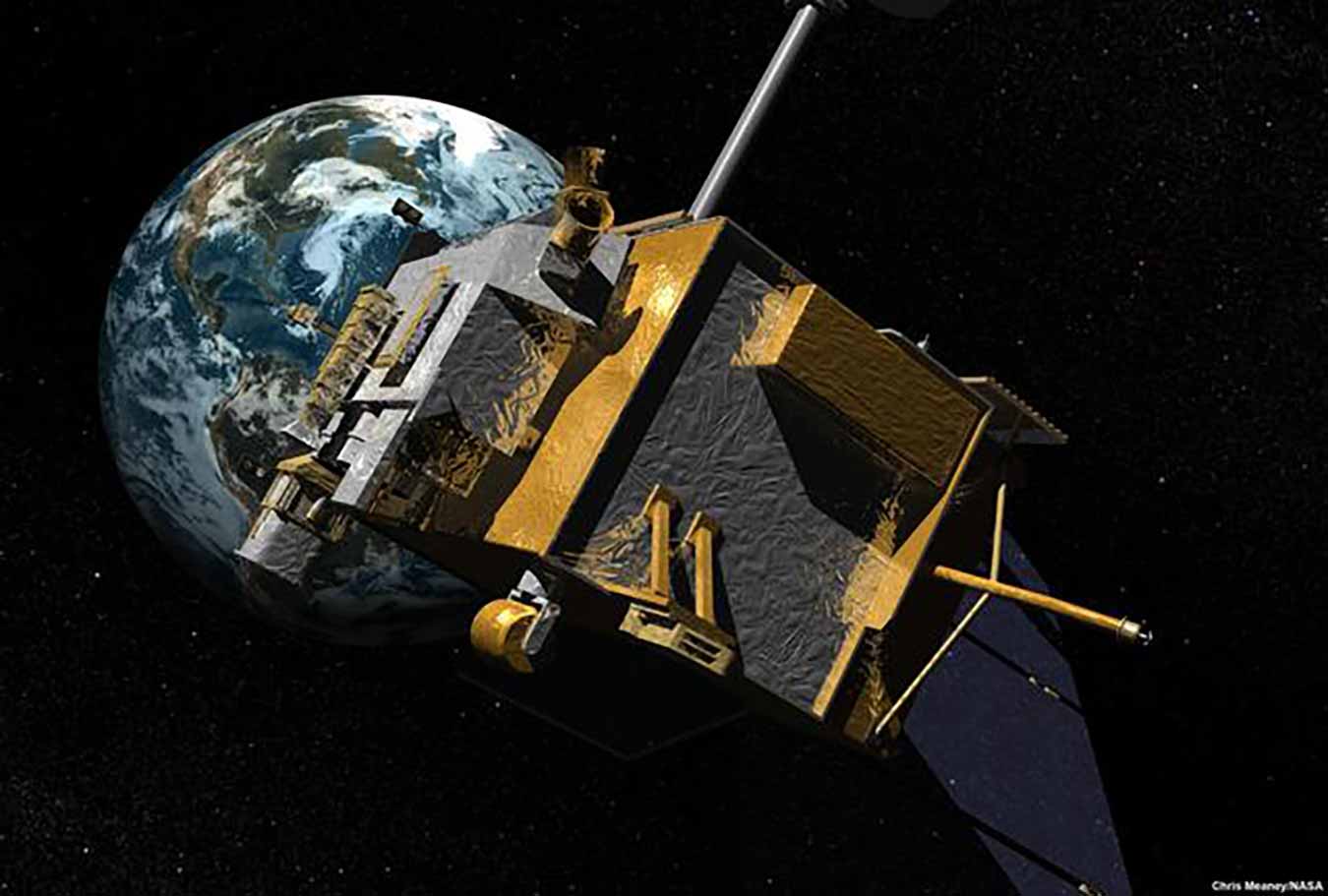

NASA’s Lunar Reconnaissance Orbiter (LRO) even used angled imaging to reveal “sublunarean voids” under surface pits. In one case, LRO pointed its camera just right at the Marius Hills pit, about 65 meters in diameter, and captured sunlight spilling into a collapsed lava chamber.

Inside these tubes, conditions are radically different from the exposed surface layer of the Moon. How hot are lunar lava tubes? Surprisingly, temperatures deep underground stay nearly constant, since the rock muffles the extreme day-night swings above. For instance, measurements show that some pit interiors hover around surprisingly comfortable 17°C (63°F) year-round, even though surface temperatures swing from about +127°C by day to –173°C at night. The rock walls also absorb cosmic and solar heat, acting like natural insulation.

Importantly, a lava tube’s ceiling of solid rock provides a thick shield. Studies estimate that even a few tens of meters of lunar rock can cut galactic cosmic-ray (GCR) and solar radiation (Solar Particle Events (SPE)) to safe levels.  For example, an old NASA analysis calculated that astronauts living under the Moon’s lava-tube roof would see vastly reduced radiation exposure (and a steady ~–20°C environment). Since these tunnels have Earth-like temperatures and natural protective armor, they are particularly intriguing as potential shelters for future lunar bases.

Why Planetary Scientists and Engineers are Excited

A simulation showing what it might look like to dive into a lunar pit and explore a connected lava tube. Source: University of Manchester/ ESA

Lava tubes on the Moon are tantalizing for two main reasons: protection and science. For decades, scientists have proposed that lunar lava tubes could be prime candidates for housing human settlements on the Moon. These underground structures could potentially offer natural protection against the current biggest hurdles of lunar exploration and mining – space hazards like cosmic radiation, meteorite impacts, micrometeoroids, and debris from nearby collisions.

Additionally, unlike the Moon’s surface, which experiences extreme temperature swings between day and night, lava tubes maintain a relatively stable internal climate, making them a promising option for long-term habitation.

• Radiation Shield

Deep inside a volcanic skylight, astronauts could be sheltered by tens of meters of rock from harsh space radiation. Being under the Moon’s crust could cut the radiation dose by orders of magnitude.

• Impact Protection

The Moon’s surface is peppered by micrometeorites and flying debris. A tube’s rock roof absorbs tiny impacts and ejecta, so a colony inside is naturally armored against such hazards. Astronauts could shelter in these tubes inside habitat modules, as even just several meters of rock overhead would provide protection from radiation and from the Moon’s temperature swings.

• Thermal Insulation

Unlike the barren surface that blazes and freezes, a lava tube stays at a gentle, steady temperature. This translates to much less energy needed to heat or cool a habitat, with the tube acting as a natural thermal blanket.

• Ready-Made Structure

From an engineering standpoint, a lava tube is a giant natural cavern. Instead of hauling large building blocks, future colonies could plug entrances and install life-support inside these caves. NASA’s studies highlight that intact tubes “offer potential sites for lunar base construction” since their insides are pristine and already shielded. It’s like having a pre-dug underground bunker that only needs outfitting.

• Scientific Prize

Beyond the potential for habitation, tubes are time capsules of lunar history. These hidden caves and their walls would give scientists a window into the Moon’s volcanic past. Studying undisturbed basalt layers could reveal how the Moon cooled and evolved. A lava tube might even harbor ice or exotic minerals preserved from billions of years ago.

The Moon’s lava tubes are appealing natural fortresses. If we could safely tap into these promising skylights to reach the tunnels left by lunar lava flows, when the time comes, these caves might make safer, more sustainable outposts than habitats on the open plain.

Are There Lava Tubes on Other Planets or Bodies, Too?

Yes! Pits have actually been identified throughout the solar system, not just the Moon, including those on Mars, and some indicated even on Venus, Phobos, Eros, Gaspra, and several other celestial bodies, especially those with volcanic histories and low gravity. Here’s a quick tour of where else we might find them:

Mars

Mars is the second-best studied world for lava tubes after the Moon. High-resolution images from spacecraft like Mars Reconnaissance Orbiter have revealed long, sinuous channels and pit craters that strongly resemble lunar skylights – the telltale sign of collapsed lava tube roofs.

Due to Mars’ lower gravity and past volcanic activity, its lava tubes could be even larger than those on the Moon, possibly over 1,000 meters in diameter. Some even speculate that they could be prime locations to search for signs of past microbial life, since they might preserve ancient subsurface water ice.

Other Moons (e.g., Io, Enceladus)

Io (a moon of Jupiter) is the most volcanically active body in the solar system. With its constant eruptions, it likely has lava tubes, though surface imaging is limited, and the violent environment makes exploration challenging.

Enceladus (Saturn’s moon) and others like Europa are icy but may have analogous subsurface tunnels, formed by cryovolcanism (ice instead of rock). These would not be potential lava tubes in the classical sense, but they share some structural similarities and could also be targets for future exploration.

Earth (as an analogue)

Earth’s own lava tubes, in places like Hawaii, Iceland, and the Galápagos, serve as natural analogs for testing technologies. NASA and ESA have tested robotic systems and human survival techniques in these terrestrial tubes to prepare for off-world missions.

Why does this matter? Well, because such formations across the solar system could become critical tools for exploration and eventual habitation. On airless or thin-atmosphere worlds, they provide natural protection from radiation, micrometeorites, and climate extremes – the same reasons they’re so appealing on the Moon.

Missions Studying Lunar Lava Tubes

Multiple space agencies and companies have already turned their sights on these lunar caves. NASA’s Lunar Reconnaissance Orbiter (LRO) has been crucial, mapping pit skylights and imaging their walls. In 2009-2010, LRO spotted dozens of pits (hundreds of meters across) and even used an angled view to peer into one, catching glimpses of the “sublunarean void” beneath Marius Hills. These discoveries confirmed that many pits are indeed collapsed lava tubes.

The Japanese SELENE (Kaguya) mission also provided evidence of intact tubes. In 2009, JAXA’s LRS radar first detected the famous Marius pit. A 2017 JAXA analysis of Kaguya radar sounding data confirmed “multiple lunar lava tubes” extending tens of meters deep in this region. The research even mapped one tube floor extending tens of kilometers. This reinforced the idea that vast, uncollapsed passages lie beneath the crust.

Looking ahead, both government and private missions are currently targeting lunar caves:

NASA

While the Artemis program’s initial crewed missions (Artemis I-III) will land near the South Pole (not directly on lava tubes), NASA has funded studies of future cave explorers. For example, a NIAC project called “Spelunker” envisions a lander delivering tethers and autonomous robots into a skylight.

NASA’s Commercial Lunar Payload Services (CLPS) effort is also advancing landing tech; notably, the upcoming Artemis III crew will ride Orion and transfer to SpaceX’s Starship lander in lunar orbit, demonstrating new capabilities that could later be used to send teams or cargo near a lava cave.

ESA (Europe)

In 2023, the European Space Agency solicited small-mission ideas under its Terrae Novae program for lunar scouting. One proposal, the “LunarLeaper”, is a hopping robot designed to descend into a skylight and map the subsurface. ESA has also convened scientists and engineers to craft designs for “Moon cave” missions, including rovers to map cavities using gravimetric sensors or tethered probes. These efforts recognize that a scout mission could find the best lava tubes for future bases.

JAXA (Japan)

Beyond Kaguya, JAXA’s next-generation missions and interest in lunar geology may also look for lunar caves. Its SLIM lander, dubbed “Moon Sniper”, launched in 2023, aimed to perform high-precision landing tests. While not targeted at caves directly, such tech could be applied to reach skylights.

Unfortunately, the mission came to an end on August 23, 2024, after all attempts to reestablish contact with the spacecraft (last heard from on April 28, 2024) proved unsuccessful. Yet, this effort still holds value, as it represents a significant step forward in space exploration and the relentless pursuit of lunar knowledge.

Commercial (Private)

American companies are entering the search. For instance, Intuitive Machines’ Athena lander (IM-2), set to launch in 2025 on a SpaceX rocket, carries a small “hopping drone” nicknamed Grace, along with a drill capable of digging 3 feet beneath the surface in search of ice and three rovers. This robot is specifically designed to leap into lunar lava caves and tunnels.

If successful, Grace could send back the first-ever direct measurements and data from inside a lunar lava tube. Other private initiatives (like Astrobotic, Moon Express, etc.) have also discussed instruments for scanning lava tubes.

Other Nations

China’s lunar program is also eyeing caves. Some reports (and scientific papers) describe Chinese interest in detecting and using lava tubes for future bases. The Chang’e landers and rovers have imaged pits in the Gruithuisen Domes, and Chinese scientists talk about “long-term shelter on the Moon inside a lava tube. While no dedicated Chinese lava-tube mission has been announced yet, this is an area of active research globally.

Technological Challenges and Future Research

Turning lava tubes into habitats is promising but hard. Engineers point out several hurdles that we need to overcome before we put this idea into practice.

1. Access and Descent

First, landing a spacecraft safely right at a skylight edge and descending into a deep pit is nontrivial. Rovers or robots would need to climb or rappel down steep walls into total darkness. NASA notes that cave-exploration robots must be capable of “rappelling into voids, traversing rubble, [and] navigating safely in the dark” with little communication to Earth. The “Spelunker” concept we discussed imagines sending tethered rovers and a winch to lower them into a tube.

2. Power and Communications

Inside a lava tube, there is no sunlight for solar panels, and radio signals from the surface may not penetrate the rock. This means we need new ways to power and talk to subterranean explorers. Ideas include a tethered power hub lowered into the pit (as in the Spelunker study) or laser power beaming. Lander solar panels that provided power in cruise might also be repurposed to perform tethered recharging for the cave explorers.

Similarly, communication might rely on fiber optics or relays.  Dubowsky and Boston (2006) proposed a many-robot approach using numerous small, low-cost robots that explore lunar caves by relaying communication among themselves. While this method is resilient to robot failure, the trade-off is limited capability due to the robots’ small size and budget constraints.

3. Habitat Construction

Once a lunar cave is found, building a home inside it is a complex engineering task. The tunnel will initially be in a vacuum, with jagged rock walls. To pressurize the space, we would likely need to seal cracks and possibly inflate modules against the ceiling. Civil engineers are considering stiffening structures or simply covering the cave roof with a layer of regolith (lunar soil) to add stability and prevent leaks.

Researchers are also studying how strong lunar basalt is. For instance, whether a tube’s roof can hold back pressurized air without collapsing. Some early simulations show it might be feasible to pressurize a broad tube, but this must be tested further.

4. Mapping and Site Selection

Only a few dozen skylights are known today, but the Moon may have hundreds of tubes. Finding the best tubes – ones that are big and stable enough, plus in good locations – requires more scouting. Scientists are developing methods like ground-penetrating radar, gravity field mapping, and high-resolution imaging to detect voids before landing.

For example, the previously described Japan’s SELENE Radar Sounder found lava tubes by looking for radar echoes, and NASA’s GRAIL gravity mission suggests density anomalies where tubes might exist. Continued orbital surveys and lunar drones will help pinpoint ideal cave locations.

5. Human Factors

Life inside a cave is another challenge. Interiors could trap lunar dust or have tricky lighting and air circulation needs. Any habitat will require robust life support (air, temperature control, waste recycling) in a confined, rugged space. Safety systems would be crucial to prevent fires or accidents in the narrow tunnel. These are solvable problems, but they mean additional research and testing on Earth (for example, analog studies in Earth caves or lava tubes).

Overall, many unknowns still remain. We need to understand the exact shape and stability of real lunar tubes, develop robots that can explore them, and invent ways to build and live underground. Each new study helps close the gap between an exciting idea and a working lunar base.

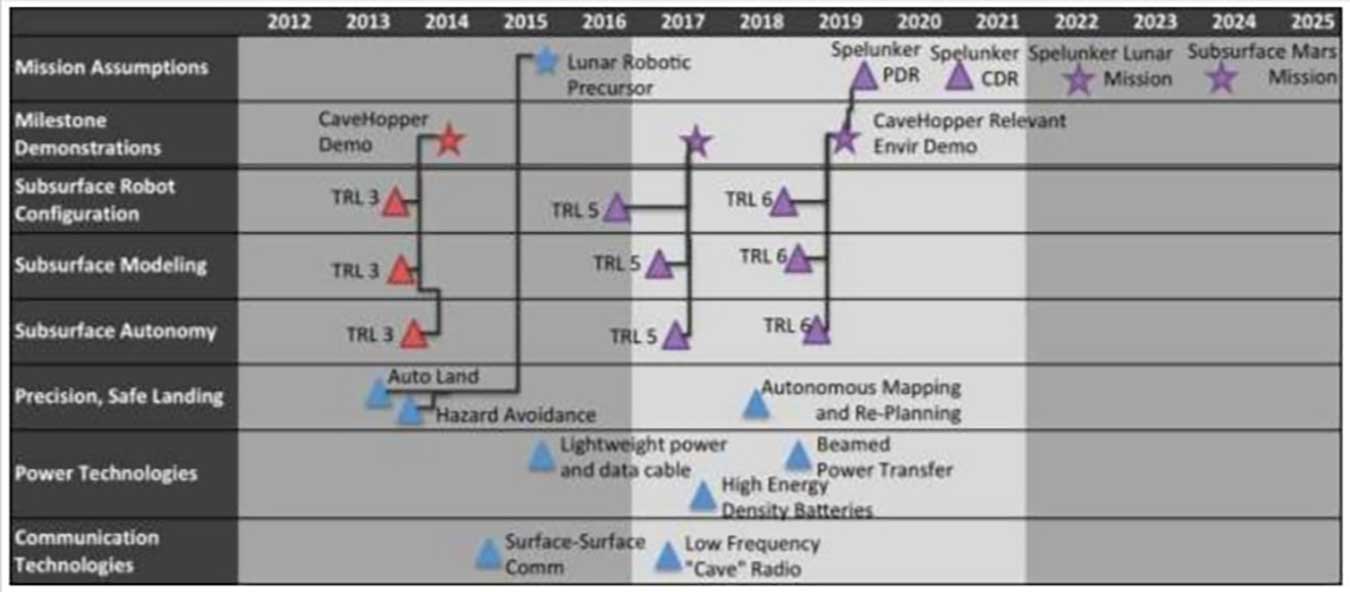

NASA NIAC research developed a draft technology roadmap for achieving mission readiness for the planetary cave exploration missions, including precision landing, communication, and power technologies:

Looking Ahead

Lunar lava tubes present a unique opportunity: nature’s own space station waiting to be used. As NASA’s Artemis program and other efforts advance, exploring these hidden caves is one of the steps toward a long-term lunar presence. The path forward will involve many missions. Luckily, lunar lava tubes have gone from mere theory to being actively explored by many players. NASA, ESA, JAXA, and private companies are planning the first steps to find, map, and eventually send rovers (and one day, hopefully, astronauts) into these subterranean tunnels.

The payoff could be huge – lunar bases with natural radiation bunkers, stable shelters, and direct access to pristine geological treasures. In the next decades, we may indeed find ourselves underground on the Moon, turning these ancient lava tubes into the cradle of humanity’s next space frontier.

Among them, 16 Psyche (6178) 1986 DA and (7474) 1992 TC are some of the most promising exploration targets. Let’s start with the first one, 16 Psyche.

16 Psyche

Asteroid Psyche is one of the most unique and mysterious objects in the asteroid belt – a massive, metal-rich body orbiting between Mars and Jupiter. Originally thought to be almost entirely composed of metal, recent observations suggest it is a mix of rock and metal, with metal making up anywhere from 30% to 60% of its volume.

Scientists speculate that 16 Psyche may be the exposed core of a differentiated body – a planetesimal whose outer layers were stripped away by ancient collisions. If this is the case, it could offer a unique glimpse into the cores of terrestrial planets, including Earth, revealing how metal-rich planetary cores formed in the solar nebula.

Size and Composition

This metallic asteroid is enormous by asteroid standards, measuring 173 miles (280 km) across at its widest point, with a surface area of 64,000 square miles (165,800 square kilometers). Its irregular, potato-like shape suggests that it has undergone significant impacts throughout its history.

Observations indicate that its surface is highly varied, with regions of different metal content and crater-like depressions that could reveal a history of ancient collisions. These features make it a fascinating target for exploration, as they could provide insights into how metal-rich asteroids evolve over time.

The asteroid’s thermal inertia, a measure of how quickly it absorbs and releases heat, has been key in determining its composition. Data gathered from radar observations and infrared studies suggest a mix of iron, nickel, and silicate materials, similar to those found in Earth’s mantle and crust. The asteroid’s density and reflectivity indicate that some areas may be more metallic, while others contain a higher concentration of rocky material.

Orbit and Rotation

16 Psyche orbits the Sun at a distance ranging from 235 million to 309 million miles (378 to 497 million kilometers), taking five Earth years to complete one orbit. However, a day on Psyche is relatively short, just over four hours long, as it rapidly spins on its axis.

Its position in the asteroid belt means it is constantly bombarded by smaller space debris, potentially altering its surface over time. Understanding its rotation and orbit will help future missions navigate and land safely, should mining efforts become feasible.

The Psyche Mission: NASA’s Quest for Answers

NASA launched the Psyche spacecraft on October 13, 2023, aboard a Falcon Heavy rocket to study this remarkable asteroid up close. The spacecraft will arrive in 2029 and spend about two years mapping and analyzing Psyche’s surface, aiming to answer key questions about its composition, structure, and history. The mission is part of NASA’s Discovery Program, which focuses on cost-effective planetary science missions.

Once in orbit, Psyche’s gravity field will be measured using radio signals, allowing scientists to determine its internal structure. The mission will also test advanced instruments, including:

• Multispectral Imager – This instrument consists of two identical cameras equipped with filters and telescopic lenses. It will capture high-resolution images of the asteroid’s surface, helping scientists distinguish between metal and rock, identify surface features, and create a detailed geological map.
• Gamma-Ray and Neutron Spectrometer – This device will analyze the chemical composition of Psyche by detecting gamma rays and neutrons emitted by the surface when hit by cosmic radiation. This will provide data on the abundance of iron, nickel, and other elements present.
• Magnetometer – Psyche is expected to have no active magnetic field, but if remnants of an ancient field are detected, it could confirm that Psyche was once part of a larger body with a molten metal core.
• Deep Space Optical Communications (DSOC) – A revolutionary technology demonstration for high-bandwidth laser communications beyond Earth’s orbit. This system could pave the way for future deep-space missions that rely on high-speed data transfer.

The spacecraft will use solar-electric propulsion, meaning it will be powered by solar panels and use ion thrusters to navigate. This energy-efficient propulsion system allows for a longer and more flexible mission, which makes it ideal for deep-space exploration. You can check out NASA’s Psyche spacecraft in real time with this interactive simulation: NASA Psyche Tracker – see its current location and follow its journey as it travels through the Solar System.

Mining Potential

Many sensational headlines have claimed that 16 Psyche contains enough metals to make everyone on Earth a billionaire, and this is really exaggerating the truth. While it is undeniably metal-rich, the feasibility of mining it remains a significant challenge.

Psyche is located deep in the asteroid belt, requiring years of travel, and any mining operation would need to overcome extreme logistical hurdles, including:

• Low gravity – Extracting and transporting materials from an asteroid with weak gravity would require specialized techniques, such as magnetic separation or electrostatic beneficiation.
• Distance from Earth – Mining missions would need autonomous robotic systems capable of operating independently for years without human intervention.
• Unknown surface conditions – The lack of direct data means that Psyche’s surface could present unexpected challenges, such as loose regolith or buried metallic deposits that are difficult to access.

However, the asteroid remains valuable from a scientific and technological standpoint. Studying it will improve our understanding of how metals distribute in space, refine mining techniques for future asteroid missions, and possibly pave the way for resource extraction on nearer asteroids.

If successful, the Psyche mission could serve as a test case for future asteroid mining efforts, providing key insights into the challenges and benefits of extracting resources from metal-rich bodies. It will also help determine if mining efforts should be directed at more accessible near-Earth asteroids instead.

(6178) 1986 DA

1986 DA is a near-Earth asteroid (NEA) classified as an Amor-type asteroid. Unlike 16 Psyche, which resides in the asteroid belt, 1986 DA’s orbit brings it much closer to Earth. This makes it a far more practical target for mining missions in the future.

Composition and Structure

Radar observations of 1986 DA indicate that it has a highly reflective surface, consistent with a metallic composition. Scientists believe this asteroid is a fragment of a differentiated body, a much larger celestial object that melted, separated into layers, and was later shattered by a catastrophic collision.

Spectral analysis suggests that 1986 DA consists of approximately 85% metal and 15% pyroxene, with an iron-nickel composition similar to certain types of meteorites found on Earth. Some estimates suggest that this asteroid contains more metal than Earth’s entire global reserves of iron, nickel, and precious platinum group metals, but nothing has been proved yet.

Orbit and Rotation

1986 DA orbits the Sun every 4.71 years, traveling between 1.17 AU and 4.46 AU from the Sun. It is about 2.3 kilometers in diameter, roughly the size of Mount Everest. The asteroid completes a full rotation every 3.5 hours.

It has two predicted close approaches to Earth:

• April 7, 2038 – 29.6 million km from Earth
• April 6, 2076 – 29.0 million km from Earth

Although its orbit brings it relatively close to our planet, 1986 DA is not considered a hazardous object since its trajectory does not pose any imminent risk.

Mining Potential

Given its metal-rich composition and accessibility, 1986 DA is one of the most promising candidates for asteroid mining. It may be a key target for companies like Karman+ and AstroForge, which are developing plans for future asteroid resource extraction. If successfully mined, the materials found in 1986 DA could be used in space construction, fuel production, and even for manufacturing valuable metals for Earth-based industries.

(7474) 1992 TC

1992 TC is another Amor-type near-Earth asteroid, meaning that its orbit crosses Mars but not Earth. It is classified as a Large Near-Earth Object (NEO) due to its size and orbit.

Composition and Structure

Unlike the 1986 DA, which has been identified as a metal-rich asteroid, the composition of 1992 TC remains less certain. However, given its classification and orbital characteristics, it is believed to contain significant metallic components. Its absolute magnitude of 18 suggests that it is relatively bright, an indicator of a reflective surface, possibly due to metallic content.

Orbit and Rotation

1992 TC has a semi-major axis of 1.57 AU, an eccentricity of 0.29, and an orbital inclination of 7.08 degrees. Its perihelion (closest approach to the Sun) is 1.11 AU, while its aphelion (farthest point from the Sun) is 2.02 AU.

Mining Potential

Although 1992 TC has not been studied in as much detail as 1986 DA, its proximity to Earth and potential metal content make it a compelling target for future exploration. As technology advances and asteroid mining becomes more feasible, 1992 TC could potentially be one of the first asteroids mined for its metals.

Why Are These Asteroids Important for Mining?

Asteroids like 16 Psyche, 1986 DA, and 1992 TC hold immense potential for the future of space mining. Their potentially high metal content could provide a sustainable resource base for space industries, reducing the need to launch heavy materials from Earth. With advances in in-situ resource utilization (ISRU), these asteroids could supply essential materials for building space habitats, manufacturing spacecraft components, and even fueling long-term missions to Mars and beyond.

While 16 Psyche is a long-term target due to its distance, near-Earth asteroids like 1986 DA and 1992 TC could be the first practical mining sites. Their relatively close orbits make them ideal testing grounds for extraction technologies, allowing researchers to refine techniques before attempting operations on more distant bodies.

If successful, asteroid mining could shift the way we think about resources, turning space into a self-sustaining environment where materials are gathered and used beyond Earth, rather than being transported from it.

While Venus has been a subject of extensive research, studies have primarily focused on its atmosphere, geological activity, and volcanic history rather than resource extraction. Early theories even suggested the possibility of life in the upper cloud layers.

However, given what we now know about its extreme conditions, could Venus hold valuable resources that might support space colonization? And if so, would mining them ever be feasible?

The Formation and Geology of Venus

Venus, like other terrestrial planets, formed from the protoplanetary disk around the Sun about 4.6 billion years ago. Early in its history, Venus may have had vast amounts of water, possibly even an ocean. However, due to a runaway greenhouse effect, Venus lost its liquid water as its atmosphere thickened with carbon dioxide.  Unlike Earth, where tectonic plates are the primary force shaping the landscape, Venus does not exhibit evidence of active plate movement.

Instead, the planet’s surface has been primarily shaped by volcanism, which remains the dominant geological process. Venus is covered in vast volcanic plains, towering highland regions, and unique geological formations such as pancake domes or coronae. Recent findings suggest that Venus may still experience active volcanic activity, indicating that its surface continues to be reshaped.

This ongoing volcanism is also used to explain one of Venus’ most unusual features – its low number of impact craters. While its dense atmosphere burns up many smaller incoming cosmic objects before they reach the surface, the relatively young age of the terrain suggests that frequent volcanic resurfacing plays a major role in erasing older craters, constantly renewing the planet’s landscape.

Another notable difference between Venus and Earth is its lack of a magnetic field. Unlike Earth, which has a strong internally generated field, Venus only has an induced magnetic field formed by interactions between the solar wind and its dense atmosphere. This weak field contributes to the gradual stripping of Venus’ lighter atmospheric molecules into space, which may have accelerated its loss of water over time.

Potential Resources on Venus

Despite its extreme environment, Venus may contain valuable materials that could support space industry and exploration. Several key resources could be extracted from its surface and atmosphere:

Minerals and Metals

Venus’ extreme volcanic activity plays a huge role in shaping its surface and influencing its potential resource deposits. If any significant concentrations of valuable materials exist, they are likely tied to Venus’ magmatic processes and unique highland precipitation phenomena rather than typical ore formation processes seen on Earth.

Volcanic-Related Metal Deposits

Due to the widespread and ongoing volcanism, some of the most probable mineral resources on Venus would be similar to magmatic nickel sulfide deposits found on Earth. These deposits form when molten rock cools and crystallizes, concentrating metals like nickel and iron. There is also speculation that komatiite-related deposits, rich in nickel, copper, and platinum-group elements, could still be forming on Venus due to its active mantle dynamics.

Even if such deposits exist, extracting them would be impractical. Mining metals like nickel and iron from asteroids in the solar system would be significantly easier, as asteroids contain vast amounts of these materials in environments that are far more accessible and cost-effective to mine. Unlike Venus, asteroids require no extreme heat-resistant mining equipment or technology to withstand crushing atmospheric pressures.

“Metal Snow” on the Highlands

One of Venus’ most fascinating surface features is the presence of what scientists refer to as “metal snow”. Radar measurements from past missions, such as Venus Express, have detected highly reflective regions at the peaks of Venus’ tallest mountains, some of which rise over 11 kilometers in elevation. The best explanation for this phenomenon is that these areas are coated in lead and bismuth sulfide deposits.

This process occurs because of Venus’ intense heat gradient:

• In the lowlands, where temperatures exceed 900°F (475°C), metals such as lead and bismuth are vaporized and enter the atmosphere as gas.
• As these gases rise to the cooler highland regions, they condense and precipitate out of the air, coating the mountain peaks with a metallic layer, much like frost forming on Earth’s mountain tops.

While this phenomenon is remarkable, the practicality of mining these deposits remains highly questionable. The exact thickness and concentration of these metal-rich layers are unknown, and operating machinery on Venus – even at the relatively cooler highland temperatures – would still require extreme engineering solutions.

However, what makes these metal snow deposits intriguing is the potential scarcity of lead in other space environments. Lead is rare on the Moon, Mars, and within most asteroids, meaning that Venus could theoretically be a unique source of this metal if it were ever possible to extract it. While mining Venus remains unlikely, understanding its highland geochemistry could provide insight into resource availability elsewhere in the solar system.

Atmospheric Elements

Venus’ dense atmosphere contains elements that could have potential uses in space operations, particularly nitrogen and sulfur compounds:

• Nitrogen – Although a minor component, making up about 3.5% of the Venusian atmosphere, nitrogen is a crucial element for space habitation. It can be used in life support systems, as a buffer gas in breathable air mixtures, and as a building block for various chemical processes essential for sustaining future human colonies.
• Sulfur Compounds – Venus’ atmosphere is dominated by sulfur chemistry, with sulfur dioxide (SO₂) playing a key role. This gas breaks down under ultraviolet radiation, forming sulfur monoxide (SO) and disulfur monoxide (S₂O). These, in turn, react to produce disulfur (S₂) and other sulfur allotropes, including S₄ and S₈, which contribute to the mysterious UV absorption observed in Venus’ clouds.

Scientists have also identified sulfuric acid droplets as a major component of the Venusian cloud layers, forming a thick and highly reflective barrier around the planet. This sulfur-rich chemistry has raised scientific interest, not only in understanding Venusian atmospheric processes, but also in exploring how sulfur interactions might influence planetary science, including potential applications for geoengineering on Earth.

The abundance of sulfur compounds in Venus’ atmosphere means that, in theory, they could be harvested for industrial applications in space. However, given the extreme conditions and the difficulty of extraction, practical use remains speculative. As you can see, even a planet as extreme as Venus may hold resources that could benefit a spacefaring civilization. However, whether we can actually extract and utilize them remains an open question.

Why Mining on Venus Is Very Unlikely

While Venus has some resources, extracting them poses enormous challenges and makes mining on the planet highly unlikely, even in the distant future.

Here are the most important ones:

1. Extreme Temperatures and Atmospheric Pressure

• Venus’ deep atmosphere exerts pressures up to 90 times greater than Earth’s, which would crush standard equipment in minutes.
• Surface temperatures exceed 900°F (475°C), making it difficult to operate machinery or landers for extended periods. Any equipment sent to Venus must be designed to withstand extreme heat and pressure, requiring advanced thermal-resistant materials.
• The planetary atmosphere prevents easy heat dissipation, meaning cooling systems for landers or mining machinery would need to be highly advanced and resistant to thermal damage.

2. Harsh Chemical Composition

• The chemical composition of the Venusian atmosphere includes sulfuric acid, which quickly corrodes most materials. This poses a challenge for long-term robotic operations or human presence.
• Absorption residuals and UV absorption effects create additional obstacles to long-term sensor functionality and energy collection.
• The electric field on Venus could interfere with electronic equipment, requiring advanced shielding and insulation techniques.

3. Lack of Liquid Water

• Unlike Earth or Mars, Venus has no liquid water or ice, making traditional mining and processing techniques difficult. Extracting usable materials will require dry-processing methods and new technology adapted to Venus’ extreme conditions.

Future Missions and Exploration

Even though mining Venus is unlikely, the planet is still a fascinating scientific target. Its extreme environment, mysterious geology, and unusual metal snow deposits raise plenty of questions worth exploring.  That’s why NASA and other space agencies are planning new missions to take a closer look, helping us understand Venus’ history, atmosphere, and what makes it so different from Earth.

Here are the most important upcoming missions:

DAVINCI+ Mission:

• The DAVINCI+ mission will study the deep atmosphere, measuring atmospheric composition to understand how Venus evolved and whether it once had conditions suitable for life.
• It will analyze the cloud cover and detect possible signs of life in the upper cloud layer, investigating unusual UV absorption patterns.
• The mission will drop a titanium probe into Venus’ atmosphere in 2031, gathering data on temperature, pressure, and chemical makeup as it descends.

VERITAS Mission:

• VERITAS (Venus Emissivity, Radio Science, InSAR, Topography, and Spectroscopy) will create 3D topographical maps of Venus, identifying key geological features and studying the extent of volcanic plains.
• The mission will enter a low-altitude polar orbit, using synthetic aperture radar to map surface features and study geological activity in high detail.
• VERITAS will also analyze Venus’s Emissivity to identify rock types and detect active volcanic activity, helping scientists determine the planet’s geological history and resource potential.

A Harsh but Valuable Resource Frontier

While the resources Venus has to offer are likely limited, and mining them remains nearly impossible, the planet still reveals how diverse mineral deposits can be beyond Earth. The discovery of metal snow on its highlands, for example, is a striking example of how extreme environments can create entirely new types of resources.

Studying these unique geological processes helps expand our understanding of planetary science and the possibilities of resource formation across the solar system.

Upcoming missions like DAVINCI+ and VERITAS will be crucial in better understanding Venus’ geology and resource potential, as well as determining whether its extreme environment leaves any possibility, however remote, for resource extraction in the future.

These missions will provide valuable data on the planet’s unique mineral formations and offer deeper insights into Venus’ volcanic and atmospheric processes.

Let’s explore what makes Ceres so interesting: how it formed, what it’s made of, and what kind of future it could offer.

How Ceres Formed

Ceres is the largest object in the asteroid belt between Mars and Jupiter, spanning about 940 kilometers in diameter. Unlike many smaller asteroids, which are just rubble piles, Ceres is a dwarf planet, and it’s differentiated, meaning it has a core, mantle, and crust.

Scientists believe Ceres formed relatively early in the Solar System’s history, possibly even before the planets finished forming. Its makeup is similar to carbonaceous asteroids, containing a mix of hydrated minerals, silicates, carbonates, and water ice. Interestingly, Ceres also shows signs of hydrothermal activity in its past, suggesting that liquid water once flowed beneath its surface, reacting with rock and altering its chemistry.

The surface we see today is shaped by millions of years of impacts, freezing and thawing cycles, and gradual outgassing. Features like Ahuna Mons, a massive dome thought to be a cryovolcano, and the dramatic Occator Crater, with its striking bright spots, tell us that Ceres has been anything but geologically dead. In fact, geological activity may still be happening beneath the surface.

What’s Hiding Beneath the Surface: Ceres’ Natural Resources

Thanks to NASA’s Dawn mission, we now have detailed maps and spectral data showing what Ceres is made of, and the news is exciting.

Water Ice

Ceres is rich in water ice. Up to 30% of its mass could be water locked away as ice or bound in minerals. Near the poles and in permanently shadowed areas known as cold traps, ice is stable just below the surface. In some places, Dawn detected patches of exposed ice, possibly revealed by recent landslides or impact craters.

Ammonia and Hydrated Minerals

One of the more surprising discoveries is the presence of ammonia-bearing clays – a type of hydrated mineral. These suggest that Ceres may have formed further out in the Solar System, near the orbit of Neptune, and then migrated inward. The presence of ammonia adds to its value in terms of in-situ resource utilization (ISRU), since ammonia can be used as a nitrogen source for agriculture and even as a rocket propellant.

Organic Material

Perhaps the most attention-grabbing discovery: organic material. In and around Ernutet Crater, scientists found areas enriched with aliphatic organics, which are molecules made of chains of carbon and hydrogen. These organic-rich areas may have formed on Ceres itself, rather than being delivered by a comet or asteroid, and are closely associated with hydrated minerals and carbonates.

Later studies found hints of similar materials in other regions, including near an unnamed crater and within a few dark patches elsewhere on the surface. Some researchers have even suggested the presence of amino acids, although these findings need more confirmation.

Salt Deposits and Brines

Those bright spots inside Occator Crater turned out to be deposits of sodium carbonate – basically salt. These came from brine that rose to the surface from a deep reservoir beneath the crust, evaporated, and left behind reflective salt crusts. This discovery is key evidence for recent hydrothermal activity, and the size of the deposits suggests the brine could still be present underground.

The central peaks of Occator show the highest concentration of salts, pointing to active or recent upwelling from below. These aren’t just aesthetic features; they’re clues to accessible volatile resources and active geological processes.

Silicates and Construction Material

Ceres’s rocky material could also be valuable. Its surface is a mix of silicates, clays, and other minerals that could be used as construction material. This is especially useful if a colony were ever established: dig up the regolith, process it, and build on-site.

Extracting Resources from Ceres

Mining on Ceres wouldn’t be easy, but the conditions are more forgiving than you might expect. With about 3% of Earth’s gravity, moving heavy loads is easier, and the temperatures, though cold, are manageable compared to other deep-space destinations. Still, the low gravity poses challenges. Drilling machines need to be firmly anchored to avoid bouncing off the surface.

Just like on asteroids, drilling can create projectiles that float away, potentially damaging nearby equipment. That’s why engineers are already working on technologies to reduce risk. For example, Honeybee Robotics’ TRIDENT drill is designed for low-gravity environments like the Moon but could be adapted for Ceres. It uses a bite-sampling technique, drilling in small increments and pulling material back up between each cycle to avoid overheating and jamming.

It could also be used in tandem with rovers that carry collected material back to processing stations. Water extraction would likely involve thermal processing – heating regolith to vaporize the ice and capturing the steam for condensation and use. Some areas, like cold traps near the poles, might allow for easier surface scraping and processing, while the deep reservoir under Occator Crater is a more long-term and ambitious target.

Organic and salt-rich material might require chemical extraction or high-temperature processing, depending on the application. The idea is to prioritize resources that support space travel: water for drinking and fuel, ammonia for agriculture or propulsion, and building materials for on-site construction.

Could We Build a Colony on Ceres?

Ceres is far – about 2.8 AU (Astronomical Units) from the Sun – and that distance means long communication delays and less solar energy. Still, it’s not out of reach. In fact, some mission planners argue that Ceres is a logical next step after Mars.

A colony would have to be mostly self-sufficient, relying on local resources. The good news is that Ceres seems to offer almost everything needed:

• Water for drinking, growing food, and making oxygen
• Ammonia for fertilizer or fuel
• Carbonates and organics for chemistry and potentially fuel synthesis
• Rocky materials for building shelters and radiation protection

Power could come from nuclear sources or large solar arrays. And because Ceres’s gravity is low, getting materials into orbit would be energy-efficient. There’s even been speculation about a space elevator – an idea that sounds far-fetched but is theoretically possible due to the dwarf planet’s low escape velocity.

The bigger challenge might be human health. At such low gravity, long-term exposure could cause bone and muscle loss. Solutions could involve spinning habitats for artificial gravity, or keeping stays short until we better understand the biology. There’s also the environmental impact to consider.

Ceres is not just a rock; it’s a body with organic matter, potentially even remnants of past or ongoing chemical evolution. Mining and colonization would need to tread carefully to avoid contaminating these features or losing valuable scientific data.

Why Ceres Matters for the Future?

Ceres may not be flashy, but it has a lot going for it. It’s a resource-rich, geologically interesting, and scientifically important body that sits in a strategic location in the Solar System. If we’re serious about building a space-based economy – or even just sending missions beyond Mars – Ceres could become a key logistics hub.

It offers fuel, water, construction materials, and possibly even agricultural inputs, all from a body we’ve already studied up close. And it’s stable – no atmosphere, minimal radiation compared to other deep-space locales, and plenty of space to build.

Plus, as the Dawn mission showed us, it’s full of surprises. Whether it’s aliphatic organics, bright salt flats, or a hidden deep reservoir, Ceres proves that even the quietest worlds can be full of potential.

This early trauma may be what makes Mercury so intriguing today when we talk about space mining and the potential for off-world resource utilization. Despite being a hostile environment due to its closeness to the Sun, Mercury’s unique geology and location make it a planet of interest for future mining missions. Recent discoveries suggest it may house a wealth of valuable resources — some deeply buried, others hidden in craters or infused within its crust.

Mercury’s Formation and Geologic Structure

Mercury’s high density and relatively small size strongly suggest that it is composed predominantly of metal. It has an unusually large iron core, making up around 85% of the planet’s radius, which dwarfs the proportion found in Earth or Mars.  This core is surrounded by a relatively thin silicate mantle and crust, the remnants of what was once a much thicker rocky exterior. One prevailing theory is that a massive impact early in Mercury’s formation may have stripped away much of its outer layers, leaving behind a metal-dominated planetary body.

Data from NASA’s MESSENGER mission revealed that the planet’s crust is unexpectedly rich in volatile elements like sulfur, sodium, chlorine, and potassium. These elements typically boil away at high temperatures, so their presence on Mercury suggests a very unusual planetary formation and cooling process. This has led researchers to believe that Mercury may have formed in a region or under conditions that preserved these lighter components, giving scientists valuable insight into the early solar system.

Furthermore, it’s widely believed that Mercury once had a global magma ocean. As this ocean cooled, lighter materials like graphite floated to the surface, forming a primordial crust. Over time, impacts, tectonic activity, and possibly volcanic resurfacing may have buried or altered these surface materials. Some of that graphite (especially if buried under high pressure) may have been transformed into more exotic forms, including diamond, deep within the mantle.

All of this makes Mercury not only geologically unique but also a potential goldmine of scientific and economic value in the context of space mining.

What Resources Could Be Found on Mercury?

From metallic riches to solar energy, Mercury offers a variety of potential resources that could fuel future space missions and off-world industry. Here’s a breakdown of what we might find beneath — and on — its surface:

1. Metals and Heavy Elements

Mercury’s proximity to the Sun meant it formed in a region where temperatures were too high for lighter elements to condense. As a result, its composition is metal-rich, with an abnormally large iron core and a crust enriched in heavy elements. The crust and mantle likely contain high concentrations of iron, nickel, sulfur, and silicate-bound metals like chromium or magnesium.

These materials are essential for constructing tools, habitats, and propulsion systems in space. Some scientists argue that Mercury may be the major source of metallic elements in the inner solar system, particularly for future off-Earth manufacturing bases that could reduce reliance on terrestrial resources.

2. Diamonds

A 2024 study using MESSENGER data proposed that Mercury might host a 10-mile-thick layer of diamond beneath its crust, created under enormous internal pressure. Mercury’s surface graphite, a leftover from its ancient magma ocean, could have been buried and subjected to conditions exceeding 7 gigapascals and 2,000°C, triggering a transformation into diamond. While these diamonds lie hundreds of kilometers below the surface, far beyond the reach of current or near-future mining technology, the finding underscores how Mercury’s extreme environment could generate rare and high-value materials.

3. Helium-3 and Solar Wind Elements

Due to the lack of an atmosphere and magnetic shield, Mercury is constantly bombarded by the solar wind. This enables helium-3, a rare and non-radioactive isotope of helium, to become implanted into the regolith. Helium-3 is being researched as a clean energy source for nuclear fusion, and Mercury’s exposure to intense solar wind could make it a richer source than the Moon.

Additionally, other solar wind elements like hydrogen and possibly carbon may accumulate in surface materials, presenting further opportunities for in-situ resource utilization.

4. Water Ice and Volatiles

You’ve probably heard of ice deposits on Mars, but did you know that Mercury, even if it’s so close to the Sun, has them as well? Surprisingly, Mercury’s poles host permanently shadowed craters where sunlight never reaches, allowing water ice to persist despite searing daytime heat elsewhere. These cold traps may also contain salt-rich glaciers, where salts help stabilize and preserve trapped volatile compounds like water, carbon dioxide, and possibly ammonia or methane. These volatiles are crucial for future missions — they could be refined into drinking water, breathable air, or rocket fuel.

Moreover, the discovery of these materials implies that Mercury’s subsurface may offer localized, sheltered environments, useful for robotic or even future human explorers.

5. Solar Energy

Though not a physical resource to be extracted, Mercury receives over six times more solar energy per square meter than Earth, making it a prime candidate for solar-powered mining infrastructure. This energy can drive smelting processes, support autonomous operations, or even power electromagnetic launch systems (mass drivers) to send refined materials into orbit. The planet’s slow rotation (fun fact: a day on Mercury lasts 176 Earth days) allows for predictable and prolonged exposure to sunlight, which could be harnessed with mobile solar arrays that track the Sun’s movement.

Challenges of Mining Mercury

Mining Mercury would come with a unique set of technical, environmental, and logistical challenges.

Extreme Temperatures

Mercury’s surface experiences the widest temperature swings in the solar system — from -170°C at night to 430°C during the day. These extremes would require any robotic or human operation to include advanced thermal shielding, heat management systems, and possibly mobile mining stations that move with the terminator (the line between night and day) to avoid overheating.

Radiation and Solar Exposure

With no atmosphere or magnetic field to shield it, Mercury is bombarded by solar radiation and cosmic rays, making workplace exposure limits critical to define in any future planning. Prolonged 3Hg exposure or radiation-induced material degradation would threaten equipment and health. Protection strategies could involve underground shelters or deploying mining during Mercury’s “night.”

Accessibility and Launch Costs

Mercury is deep within the Sun’s gravity well, which makes the transport of mercury resources back to Earth or other space habitats energy-intensive. Even though the planet has low gravity (38% of Earth’s), emissions of mercury, resource containers, or structures would require significant fuel and carefully planned trajectories.

Toxicity and Environmental Concerns

Mercury, the element, is toxic — and it’s important to separate the planet’s name from the different forms of mercury we encounter on Earth. However, elemental mercury and metallic mercury could be present in trace amounts within Mercury’s surface rocks or ores. If disturbed during mining or processing, they could vaporize under the planet’s extreme heat and contaminate enclosed mining systems.

This is not just a theoretical concern. Mercury contamination is a major issue on Earth, with the United States Environmental Protection Agency regulating it due to the risks it poses to human health and aquatic ecosystems. Mercury can exist in different states – solid, liquid, and gas, and its vapor pressure increases with temperature, making it prone to forming dangerous gases in hot conditions like those on Mercury.

Improper handling could lead to dangerous mercury releases into mining bases or transport vessels, especially if internal systems aren’t sealed or pressure-regulated. The gas phase elemental mercury produced could enter air filtration systems or storage tanks, contaminating breathable environments. These risks make workplace exposure limits, decontamination protocols, and real-time monitoring critical in future operations.

Space engineers would also need to consider the behavior of mercury in environmental compartments under low gravity and vacuum conditions, which are still poorly understood.  Chronic exposure to mercury vapor or fine dust could become a public health concern for any long-term missions. That’s why studying the cycling of mercury on Earth — including how it moves between land, water, and air — is essential before we ever touch a shovel on Mercury.

Engineering in Hostile Conditions

Mining operations on Mercury would face mechanical challenges due to cycling of mercury (from solid to vapor under extreme heat), dust abrasion, and micrometeorite impacts. Equipment would need to handle gas phase elemental mercury in sealed systems and be robust against the atmospheric mercury levels (even though Mercury technically lacks an atmosphere, released gases could cause localized “exospheres” around machinery).

The management of environmental compartments in such missions (sealed areas for living, processing, or storage) will be critical. As mentioned above, chronic exposure to volatile elements and dust could pose serious public health concerns, even in automated systems that might one day serve as precursors to human presence.

Learning from Earth’s Mercury Problems

While Mercury the planet offers promising opportunities for space mining, it also reminds us of challenges we face here on Earth,  especially with mercury, the element. On Earth, mercury is a known anthropogenic source of pollution. It’s used in various technologies and industries, from fluorescent lamps to chemical manufacturing, and has long-lasting effects on aquatic systems, aqueous systems, and even upper ocean layers.

Because of its toxicity, exposure to methylmercury through fish consumption, especially during pregnancy, is linked to serious developmental issues. Prenatal methylmercury exposure remains a public health concern. The United States and other countries have implemented strict guidelines to control mercury pollution and protect human health.

This is an important context for future missions. If metallic mercury or elemental mercury exists on Mercury and is disturbed during mining, we could face similar risks in space, especially if we plan to recycle or process these materials in enclosed environments. Learning from the Earth’s Mercury Fate and Transport studies will help us design better handling systems, manage mercury releases, and reduce contamination risks to equipment, astronauts, or future habitats.

In short, understanding how mercury behaves in Earth’s environmental compartments gives us a head start in anticipating how to safely manage it in space. Even though the names are coincidental, the connection is real, and lessons from Earth could make mining on Mercury safer and more sustainable.

Spotlight on BepiColombo

A key mission helping us get closer to that future is BepiColombo, a joint effort by the European Space Agency (ESA) and the Japan Aerospace Exploration Agency (JAXA). Launched in 2018 and expected to arrive at Mercury in 2025, BepiColombo consists of two orbiters: one focused on the planet’s surface and internal structure, and the other on its magnetosphere and solar wind interactions.

Its instruments will analyze Mercury’s geology, topography, composition, and space environment in more detail than ever before. These insights will build upon the discoveries made by NASA’s MESSENGER mission and could help scientists evaluate which regions of Mercury are most promising for future resource extraction, from metal-rich basins to ice-filled craters.

The mission’s findings may be key to assessing the technical feasibility, risks, and benefits of space mining on Mercury.

Is Mercury Worth Mining?

Mercury presents an exciting but daunting opportunity. Its wealth of metals, solar energy, helium-3, and even water ice makes it a strong candidate for long-term space mining, but only when our technology catches up.  The emission of mercury, extreme conditions, and the difficulty of reaching the planet make it a distant target, perhaps better suited for robotic precursors or autonomous mining machines.

Still, Mercury has a role to play in the future of space infrastructure. Mining it could eventually reduce dependency on Earth-based resources, support lunar or Martian colonies, or even supply materials for orbital manufacturing. If you’re curious about the science of mining beyond Earth, or what it takes to explore a place as extreme and unique as Mercury, stay tuned. The solar system’s smallest planet may one day offer big rewards.

The thing is, these moons could play a critical role in supporting long-term human exploration in space. From in-situ resources on the asteroids to ideal locations for scientific observation and communications infrastructure, Phobos and Deimos might become stepping stones to Mars – and potentially keys to unlocking its ancient history.

Where Did Phobos and Deimos Come From?

The origins of Phobos and Deimos remain one of the most compelling open questions in planetary science. While both orbit Mars in neat, circular paths close to its equatorial plane, their bulk densities, surface materials, and spectral properties suggest a more complex history.

There are two dominant theories, each with far-reaching implications:

1. Captured Asteroids

This theory suggests that Phobos and Deimos are carbonaceous asteroids, likely from the asteroid belt, that were pulled into orbit by Mars’ gravity. Their surface compositions, similar to C-type asteroids, support this hypothesis. These dark asteroids are rich in primitive rocky material, similar to chondritic meteorites, and could offer insight into the early solar system.

But there’s a problem. For Mars to have captured these moons into their current circular and equatorial orbits, something would have needed to slow them down; possibly a thick Martian atmosphere that no longer exists. Without a mechanism for this orbital shift, the capture theory becomes less likely.

2. Giant Impact Scenario

Alternatively, some scientists believe the moons formed from Martian material ejected during a massive collision – a process similar to the formation of Earth’s Moon. A giant impact scenario would have created a disk of debris that coalesced into the two moons. Numerical models (see Rosenblatt et al.) support this scenario by showing how a massive collision could create a disk of debris around Mars, eventually coalescing into Phobos and Deimos.

This is further supported by the distinct difference in elevation between Mars’ northern hemisphere and southern hemisphere – a possible consequence of such an ancient impact. The distribution and orbital properties of the moons also align well with predictions from these simulations, making the giant impact model increasingly compelling in light of recent research.

This model would mean that the moons are partially made of Mars itself, offering a rare chance to study early Martian crust without landing directly on the Martian surface.

Why Their Origins Matter

Knowing how the moons formed isn’t just an academic exercise; it directly impacts their resource potential and what role they might play in future missions. If Phobos and Deimos are captured asteroids, they could contain organic compounds and volatile-rich materials from the outer solar system, potentially making them valuable fuel or life-support sources for long-term space operations.

On the other hand, if they are remnants of a giant impact, they may preserve ancient Martian material, possibly even older than what’s accessible on Mars today, which may unlock a geological time capsule with information about the early Martian crust. Understanding the moons’ composition also helps determine their structural stability, how they interact with tidal forces, and how they might respond to robotic or human activity.

This information is essential when evaluating their feasibility for long-term platforms, lander missions, or even human outposts. The difference in origin could also dictate how materials are distributed beneath the surface, influencing where and how we explore them.

What Makes Phobos & Deimos So Special?

Unlike larger, geologically active moons like Europa or Enceladus, the Martian moons are small, quiet, and ancient. But that’s exactly what makes them useful:

• They preserve the earliest solar system material

• Their low gravity and lack of atmosphere make landings easier

• Their unique composition and orbits provide clues about solar system dynamics

These moons could also serve as testbeds for future missions to other small bodies or asteroid belt targets.  And, because of their proximity to Mars, they offer a controlled environment for studying planetary protection protocols, contamination risks, and tidal destruction scenarios.

What Resources Could Be Found on Phobos and Deimos?

Phobos and Deimos are not just scientific curiosities; they may as well be valuable assets for future exploration, as we’ve mentioned above. Here’s what we could potentially find on their surfaces:

1. Martian Ejecta

Studies suggest that meteor impacts on Mars have launched fragments of its surface into space, many of which eventually landed on the nearby moons. These fragments could include preserved Martian meteorites, which could provide pristine samples of the Martian crust. Some of this material may even predate what’s accessible on the Martian surface today. If analyzed, it could help scientists identify biosignatures, investigate Mars’ geologic evolution, or trace back the conditions that once supported a more habitable environment.

2. Primitive Carbonaceous Materialaster

If the moons are indeed captured asteroids, they may contain untouched carbon-rich material from the early solar system. This type of carbonaceous material is often linked to the presence of organic molecules and water-bearing minerals. These volatiles could potentially be harvested in the future for oxygen, fuel, or water, making these moons not just interesting scientifically but also practically useful for sustaining deep space missions.

3. Regolith and Dust Layers

Phobos and Deimos are blanketed with thick layers of fine-grained regolith, much of it likely produced by constant asteroid impacts. The dust also includes distinctive blue materials and scattered rocky material from Mars itself or beyond. This surface layer could preserve a time capsule of solar system history, potentially revealing how dust and debris move through space or even how Mars has interacted with its environment over billions of years.

4. Stable Platforms for Long-Term Use

Thanks to their low gravity and absence of atmosphere, both moons offer favorable conditions for long-term operations. Their surfaces are well-suited for robotic systems, equipment depots, or outposts that support future human missions to Mars. A platform on one of the moons could operate for years with fewer engineering challenges than planetary surfaces, making them ideal for scientific monitoring or even refueling missions.

5. Strategic Positioning

The current orbits of Phobos and Deimos allow for nearly constant line-of-sight communication with Mars. A lander or orbital platform stationed on the Mars-facing side of Phobos could monitor atmospheric activity, dust storms, or even track rovers and landers on the surface. This positioning is also beneficial for real-time data relay and could serve as a forward operating base for surface missions.

The MMX Mission – What’s Happening Next?

Japan’s Martian Moons eXploration (MMX) mission, led by JAXA, is scheduled to arrive in 2025. It’s the most ambitious attempt yet to unlock the secrets of Phobos and Deimos – both scientifically and strategically.

The MMX mission is designed to:

• Orbit both Phobos and Deimos to conduct extensive observations of their orbits, surfaces, and environments
• Land on Phobos, using advanced imaging and terrain mapping to identify a safe and scientifically valuable sampling site
• Collect at least 10 grams of regolith from Phobos’ surface using a specialized coring tool that drills down approximately 2 cm
• Deploy a rover jointly developed by CNES (France) and DLR (Germany) to explore the local geology and assist in sample selection
• Conduct remote sensing, including spectroscopy and surface imaging, to better understand composition, space weathering, and potential resource distribution
• Return the sample to Earth in a dedicated capsule scheduled to arrive in 2029, allowing laboratory-based analysis of Martian moon material for the first time in history

In addition to these objectives, MMX will perform multiple flybys of Deimos, collecting data that could inform future landing missions.

But why is this mission critical? Because it will allow scientists to test longstanding theories about the moons’ origins, whether they are captured asteroids or formed from Martian debris following a giant impact.

These samples could contain primitive solar system materials, organic compounds, or even ancient Martian ejecta, which makes them invaluable for both planetary science and resource utilization. The findings from MMX could influence future strategies for exploring not just Mars, but small celestial bodies across the solar system.

Strategic Role in Human Missions

As NASA and other agencies plan for human exploration of Mars in the 2030s, Phobos and Deimos could become critical waypoints. They could:

• Offer natural radiation protection

• Serve as logistical hubs or fuel depots

• Provide materials for in-situ resource utilization (ISRU)

A long-term lander platform on Phobos could support high-bandwidth communication with Earth, monitor Martian atmosphere, and relay data for surface missions. Visibility calculations done using the SPICE system show that a lander on the Mars-facing side of Phobos would have a continuous view of both Mars and Earth. This could enable simultaneous monitoring of Mars’ surface and space weather conditions.

The Long-Term Value of Phobos and Deimos

At first glance, Phobos and Deimos may seem like little more than rocky leftovers orbiting Mars. But the closer we look, the more they surprise us. Their unique orbits, surface materials, and potential for future missions make them more than just satellites; they could be some of the key players in the future of planetary exploration.

As space agencies like JAXA and NASA push the boundaries of Martian science, these moons offer something rare: stability, access to valuable materials, and a strategic position for observation and communication. With each study and mission, we come a step closer to turning their mystery into a meaningful part of our interplanetary future.

As research and space exploration evolve, asteroids are drawing increased interest for both their scientific significance and their practical potential. Understanding how they formed, how they differ from other celestial bodies, and what lies beneath their surfaces opens new possibilities – not only for learning about the past, but also for shaping the future.

How Did Asteroids Form?

Let’s start with the basics: how did asteroids even form? Asteroids formed in the early solar system from a rotating protoplanetary disk of gas and dust. This was the same disk that formed the Sun and all the planets. While some parts of this disk clumped into full-sized planetary bodies, other parts were disrupted by gravitational forces, especially from larger planets like Jupiter, preventing full formation.

These leftover materials became rocky objects that we now call asteroids. Most ended up in the asteroid belt, a region between Mars and Jupiter. This belt contains millions of asteroids, ranging from tiny pebbles to massive bodies hundreds of kilometers across. The largest object in the asteroid belt is Ceres, which is so big it’s classified as a dwarf planet.

Other larger asteroids like Vesta, Pallas, and Hygiea are also key examples of what scientists call differentiated asteroids – objects that got hot enough early in their lives to form layers, like a core and crust. But the vast majority of asteroids are smaller and more primitive. They never underwent melting or separation and remain frozen in time, which means that they are preserving conditions from the birth of the solar system.

The Different Types of Asteroids

Asteroids are typically grouped into several classes depending on what they’re made of, how they reflect light, and in some cases, where in the solar system they originally formed. So, naturally, understanding these types isn’t just important for scientists – it’s also key for planning exploration missions or even mining operations in the future.  Let’s take a more detailed look at these classifications:

• C-type Asteroids (Carbonaceous Asteroids)

These are by far the most common type. They make up around 75% of all known asteroids and are found mostly in the outer part of the asteroid belt. These are very dark objects due to their high carbon content and are believed to be among the most primitive celestial bodies in the solar system. They haven’t changed much in over 4 billion years. What makes them especially interesting is that they contain water-bearing minerals and complex organic compounds.

For instance, NASA’s OSIRIS-REx mission studied the near-Earth asteroid Bennu – a C-type – and found signs of hydrated clay minerals and even organic molecules. These discoveries support the theory that such asteroids might have played a role in delivering water and building blocks of life to Earth.

• S-type Asteroids

Made mostly of silicate rocks mixed with some metal. They account for about 17% of known asteroids and are generally brighter than the C-types. You’ll find them mostly in the inner region of the asteroid belt. These asteroids are thought to have formed from the crust of larger bodies that were once partially molten.

One well-known example is Itokawa, which was visited by Japan’s Hayabusa mission. The spacecraft revealed that Itokawa is actually a rubble pile – a collection of rocks and dust held loosely together by gravity. This told scientists that S-types could be reassembled fragments from earlier, larger asteroid collisions.

• M-type Asteroids (Metallic Asteroids)

Less common but incredibly important for research and mining potential. These bodies are rich in metals like nickel and iron, and sometimes even contain rare precious metals like platinum. Scientists believe they’re the exposed cores of differentiated asteroids – bodies that once melted and separated into layers, like planets do. Over time, collisions stripped away their outer rock, leaving only the metal-rich core.

The best example here is 16 Psyche, a large metallic asteroid in the middle of the asteroid belt. NASA launched the Psyche mission in 2023 specifically to study it, as it may offer a close-up look at what the interior of a rocky planet like Earth looks like.

Finally, many asteroids – no matter their type – are not solid at all. They’re what we call rubble pile asteroids: loose collections of rock, dust, and boulders that came together after past collisions. These structures are held together mostly by gravity and are much more fragile than solid bodies.

This has major implications for spacecraft attempting to land or extract material. Ryugu, studied by Japan’s Hayabusa2 mission, is a well-known example of this type, as is the Didymos-Dimorphos binary system that NASA used for its DART impact test. In both cases, the missions revealed how loosely packed and unstable these asteroids can be, which adds another layer of complexity when thinking about asteroid mining or planetary defense.

In short, each class of asteroid tells a different part of the story of our solar system’s history. They also present unique challenges and opportunities when it comes to future exploration, scientific study, and practical use.

What Makes Asteroids Different from Other Ore Deposits?

Compared to Earth, Mars, or even the Moon, asteroids offer something very rare: homogeneity. On Earth, ore deposits vary greatly in quality and distribution. Before mining can begin, companies must conduct expensive and time-consuming surveys and test drilling to locate high-grade areas. The composition of asteroids, especially metallic asteroids, is much more uniform.

This is because many of them formed as molten cores of planetesimals that were later broken apart. The metal distribution is largely even. That means mining an asteroid doesn’t require extensive exploration to find the best part – the ore grades should be the same everywhere.

According to the Space Resources Handbook, metal-rich asteroids can contain up to:

• 80% iron and nickel,
• With platinum-group metals (PGMs) in concentrations 100 to 1,000 times higher than Earth’s richest mines.

This makes them extremely attractive for future mining, especially as rare earth metals on Earth become harder to find and extract.

Why Is Asteroid Mining Practical?

There are millions of asteroids in our solar system, scattered across various regions but especially concentrated in the asteroid belt and among near-Earth asteroids (NEAs). NEAs are particularly appealing for mining because their asteroid orbits bring them relatively close to Earth, sometimes closer than the Moon itself. This makes them much more accessible for robotic missions, with lower energy requirements compared to landing on a planetary surface.

NASA’s Center for Near-Earth Object Studies keeps an updated list of all Earth objects, including those with favorable orbits and composition for future exploration. The current asteroid count includes thousands of NEAs, and many of them have been identified as potential targets for prospecting or mining.

Another reason asteroid mining is practical is because of the low gravity of these objects. Unlike the Moon or Mars, asteroids do not require heavy drilling equipment or large-scale excavation systems. Their surfaces can often be accessed with lightweight robotics or landers. For rubble pile asteroids, materials may even be collected using suction devices or scooping arms, as demonstrated by missions like OSIRIS-REx and Hayabusa2.

In addition to accessibility, the economic appeal lies in their makeup. While planetary ore deposits often require extensive geological surveys to locate the richest seams, metallic asteroids tend to have a more uniform composition throughout. These solid bodies are essentially entire chunks of valuable material, like a floating mine in space. As a result, extraction could be simplified, and pre-mining analysis greatly reduced, saving both time and cost.

Altogether, the combination of proximity, consistent ore quality, and ease of access makes asteroid mining a highly practical and increasingly realistic option as space technology continues to develop.

What Are the Risks?

While the opportunities are exciting, not all asteroids are safe or simple to interact with. Some rubble piles might fall apart when touched due to their fragile, loosely bound structure. These kinds of asteroids pose challenges not only for mining but also for landing or anchoring spacecraft. Their unpredictable surface behavior, demonstrated by missions like OSIRIS-REx, which saw Bennu’s surface collapse like a ball pit, can complicate any mission operations.

Others could be hazardous asteroids, with orbits that might bring them dangerously close to Earth. These objects are carefully monitored because small changes in trajectory, caused by gravitational interactions or the Yarkovsky effect (where uneven heating causes a slow orbital drift), can shift their path over time.

Asteroid impacts have shaped our planet’s history, with the most famous being the Chicxulub impact that wiped out the dinosaurs around 65 million years ago. That asteroid was about 10 km wide, but even a dangerous asteroid just 200–300 meters across could destroy an entire city or region. Today, the majority of NEOs are tracked by global monitoring systems, including NASA’s Near-Earth Object Observations Program and ESA’s Planetary Defence Office.

That’s why missions like NASA’s DART mission are so important. DART successfully altered the orbit of Dimorphos, a small moonlet in a binary asteroid system, proving that kinetic impact could be a viable method to deflect a hazardous object. This marked the first real-world test of planetary defense technology and paved the way for future strategies to prevent catastrophic asteroid impacts.

What Are the Latest Missions Telling Us?

We’re in a golden age of asteroid exploration. Here are some recent and upcoming missions that reveal more about asteroids:

• OSIRIS-REx (NASA) launched in 2016 and reached the near-Earth asteroid Bennu in 2018. After mapping its surface and conducting sample collection in 2020, it returned 121.6 grams of material to Earth in 2023. The samples revealed rich carbon compounds, clay minerals, and signs of water, offering insight into the formation of C-type asteroids and how they may have contributed organic compounds to early Earth.
• Hayabusa2 (JAXA) arrived at asteroid Ryugu in 2018 and collected samples from both surface and subsurface layers using a small impactor. The samples, returned to Earth in 2020, contained hydrated minerals and amino acids, confirming Ryugu’s history as a rubble pile asteroid with exposure to water. This mission advanced our understanding of how such asteroids evolve and retain materials crucial for life.
• Lucy Mission (NASA) launched in 2021 and is currently en route to study eight Trojan asteroids locked in Jupiter’s orbit. These targets are believed to be among the oldest and least-altered bodies in the outer region of the solar system. By visiting both the leading and trailing swarms of Jupiter’s Trojans, Lucy aims to reveal how different populations of asteroids formed and migrated across the early solar system.
• Psyche Mission (NASA), launched in 2023, is the first mission to visit a solid body composed mostly of metal. Its destination is 16 Psyche, a large metallic asteroid thought to be the exposed nickel-iron core of a once-molten protoplanet. Expected to arrive in 2029, Psyche will provide key insights into the internal structure of differentiated asteroids and help scientists compare metal asteroids to Earth’s own planetary core.

Each mission helps us understand how these rocky bodies formed, what they’re made of, and how we might use them in the future for science, safety, and resources.

Space Rocks with Serious Potential

These celestial objects preserve the untouched history of the early solar system and possibly, the future of the sustainable space industry. With their consistent composition, especially in the case of metallic asteroids, they offer a mining opportunity unlike anything on Earth or the Moon. Their accessibility and resource potential are already shifting how we think about long-term exploration.

Momentum is building – scientific missions are returning with groundbreaking insights, and commercial interest is following closely behind. In the vast and quiet spaces between the planets, asteroids are no longer just drifting; they’re waiting.

So, let’s break down why Helium-3 is attracting attention, how it could power future fusion power plants, why we find it on the Moon and not Earth, and who is racing to extract it.

What Is Helium-3?

First things first, let’s start with the basics and explain what Helium-3 is.  Helium-3 (3He) is a light, stable isotope of helium with two protons and one neutron. Unlike the more common helium-4, which has two neutrons, helium-3 is non-radioactive and does not decay over time. It’s extremely rare on Earth, occurring only in trace amounts as a result of the decay of tritium or being released from the Earth’s crust.

Because of its unique nuclear properties, helium-3 has attracted attention as a potential fuel for fusion reactions. When used in fusion reactions, helium-3 produces energy without the dangerous neutron flux and long-lived radioactive waste typically associated with nuclear power, making it an especially attractive option for clean fusion energy.

Helium-3 is also used in various scientific applications, which we will cover a bit later in more detail. But with Earth’s helium-3 stockpile limited and costly to replenish, scientists have looked to the Moon as a potentially more sustainable source compared to terrestrial supplies.

Why Is Helium-3 on the Moon and Not on Earth?

Now, we’ve said that helium-3 is an isotope of helium that is extremely rare on Earth but relatively abundant on the Moon. Why the difference?

The answer lies in the solar wind. This constant stream of charged particles from the Sun, including helium-3 produced in the Sun’s core, bombards the lunar surface, which has no atmosphere or magnetic field to deflect it. Over billions of years, particles like helium-3 embedded themselves into the Moon’s topsoil, or regolith. On Earth, our protective atmosphere and magnetic field block most of the solar wind, and geological activity buries anything that does land.

Studies estimate there are substantial quantities of helium-3 on the Moon, potentially over a million metric tons embedded in the upper few meters of soil. While its natural abundance is still very low (about 20 parts per billion), the abundance of helium-3 on the Moon is several orders of magnitude higher than on Earth.

Why Is Helium-3 So Valuable?

Helium-3’s value comes from what it could do in the future: power nuclear fusion reactors that generate clean, safe, and efficient energy. Traditional nuclear power plants rely on nuclear fission, splitting heavy atoms like uranium, which produces long-lived radioactive material and hazardous waste. Fusion, by contrast, combines light atoms like hydrogen to form helium, releasing vast amounts of energy with little waste.

Most current fusion research focuses on D-T fusion – the reaction between deuterium and tritium. However, this reaction produces a lot of energetic neutrons, which damage reactor walls and make them radioactive over time. It also uses tritium, which is hard to handle due to the radioactive decay of tritium.

Here’s where helium-3 comes in. When combined with deuterium, helium-3 can fuel an aneutronic fusion reaction. That means minimal neutron flux, less radiation, and less wear on equipment. In theory, fusion reactions using helium-3 could power fusion energy plants with none of the long-term nuclear waste problems of today.

Scientists like Gerald Kulcinski, a leading expert in plasma physics and fusion research, have long championed helium-3 as the ideal fuel for clean fusion power. Helium-3 also has practical value today. It’s used in quantum computers as a cryogenic coolant, particularly in dilution refrigerators, which are essential for maintaining the ultra-low temperatures required to stabilize quantum bits (qubits).

In national security applications, helium-3 is a key component in neutron detectors used for scanning cargo and detecting nuclear material, especially at ports and border crossings. These detectors rely on helium-3’s sensitivity to neutrons, allowing them to identify even small amounts of radioactive material.

In the medical field, helium-3 can be used in hyperpolarized gas MRI, a specialized imaging technique that provides detailed views of lung function by using inhaled helium-3 gas as a contrast agent.  But Earth’s helium-3 stockpile is tiny. We can’t produce it in substantial quantities without waiting for the decay of tritium, which is slow and expensive.

What Would Helium-3 Mining Look Like on the Moon?

Now, let’s get practical. What does mining helium-3 from the Moon involve? Since helium-3 is embedded in lunar regolith, miners would need to:

1. Scoop and collect soil from the upper few meters of the lunar surface using robotic excavation tools designed to withstand lunar dust and temperature extremes.
2. Heat the regolith to around 700°C, usually through solar or nuclear-powered furnaces, to release trapped gases that include both helium-3 and helium-4.
3. Separate and extract the helium-3 through advanced cryogenic and chemical processes that can isolate the helium-3 atom from the other volatiles present.

Because of its low concentration, you’d need to process millions of tons of soil to harvest a few hundred kilograms. That’s not easy – it requires new technology and robotics, substantial energy supplies, and highly efficient gas-separation infrastructure. Specialized harvesting rovers would likely work in tandem with stationary heating and extraction units to optimize throughput.

To put the scale in perspective, the amount of lunar soil that would need to be processed is comparable to what some of the largest mines on Earth handle each year. While such operations are achievable here, replicating that scale on the Moon presents a significant logistical and engineering challenge.

Operations would likely need to be semi-autonomous, using AI-guided machines to handle the harsh environment and delicate extraction processes with minimal human intervention. Maintenance systems would need to be modular and remotely serviceable.

Transportation systems would need to carry the extracted helium-3 from the Moon to Earth, potentially using existing infrastructure like the Kennedy Space Center for delivery and distribution. While mining will require significant infrastructure and energy investment, the transport itself poses less of a challenge — only a few tons of helium-3 would be needed annually, making return missions relatively manageable in terms of mass.

Who Is Planning to Mine Lunar Helium-3?

Several companies and agencies are making bold moves toward Helium-3 extraction. Here are the most important ones:

• Interlune is a Seattle-based startup founded by former Blue Origin engineers and Apollo astronaut Harrison Schmitt. They’ve raised over $15 million to launch a mission by 2028, focusing directly on lunar helium-3 harvesting.
• ispace, a Japanese space company, has partnered with Magna Petra, aiming to extract and eventually transport helium-3 to Earth. Their early mission tests focus on lander tech and small-scale regolith sampling.
• NASA and international agencies (including China, India, and Russia) are eyeing lunar resources, including helium-3, for long-term infrastructure. While not all are focused solely on helium-3, it often features in their long-range goals.

The commercial interest is clear. With rising demand for helium in quantum computers and the potential of fusion energy, the race is on to unlock helium-3’s value.

Can Helium-3 Deliver?

It’s important to temper the excitement with realism. While Helium-3 sounds like a miracle fuel, we still haven’t built working nuclear fusion reactors that rely on it. Most fusion experiments today use D-T fuel because it’s easier to ignite.

However, scientists and engineers are pushing boundaries. Research into aneutronic fusion, better confinement methods, and new materials is making helium-3 more plausible as a fuel of the future. If we succeed, it could power a new generation of safe, clean nuclear power plants with minimal radioactive material.

But, until then, helium-3 remains a symbol of what’s possible in the age of space resource utilization. From the solar wind to the Moon’s lunar surface, nature has left us with a riddle worth solving, and the question is: who will get there first, and can they make it work?
